Maintenance Service Reminder Reset - Procedure 05
NOTE:
Service reminder light (if equipped) will come on at 5000 or 10, 000 mile intervals to indicate oil and filter change is scheduled. After changing oil and filter, reset mileage counter.
Vehicles with VDO Instrument Cluster
Identify type of instrument cluster used in vehicle. See Figure.
The service reminder indicator is lit for two minutes each time the engine is started until it is reset after the next service. Reset is performed using a Volvo scan tool, or equivalent aftermarket scan tool.

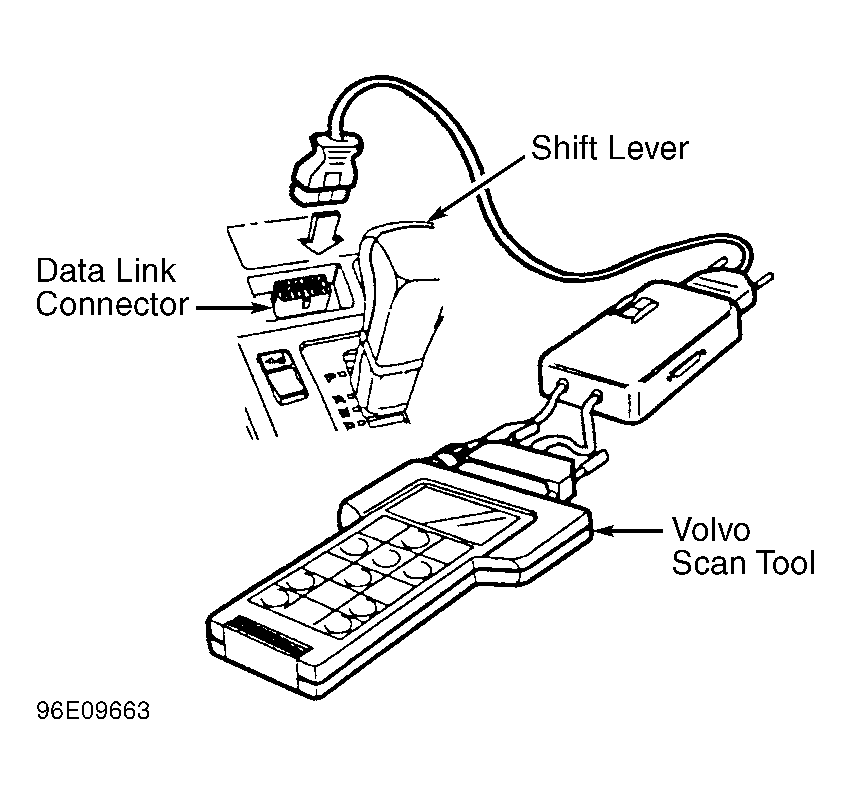

Connect scan tool to Data Link Connector (DLC) in center console, in front of shift lever. See Fig 1. Turn ignition on, with engine off. Follow scan tool menus as follows:
- Select LANGUAGE, press ENTER
- Select 800 SERIES, press ENTER
- Select SERVICE, press ENTER
- Select RESET SRI, press EXIT
