Climate Control Module CCM Connector End View (3/112)

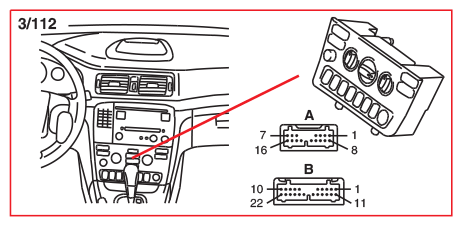

Fig 1: Climate Control Module CCM Connector End View (3/112)
G10803948Courtesy of VOLVO CARS CORPORATION
