Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Engine Compartment

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 2: Engine Components

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 3: Center Console (C70)

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 4: Engine Compartment Relay/Fuse Box (C70)

Courtesy of VOLVO CARS OF NORTH AMERICA.

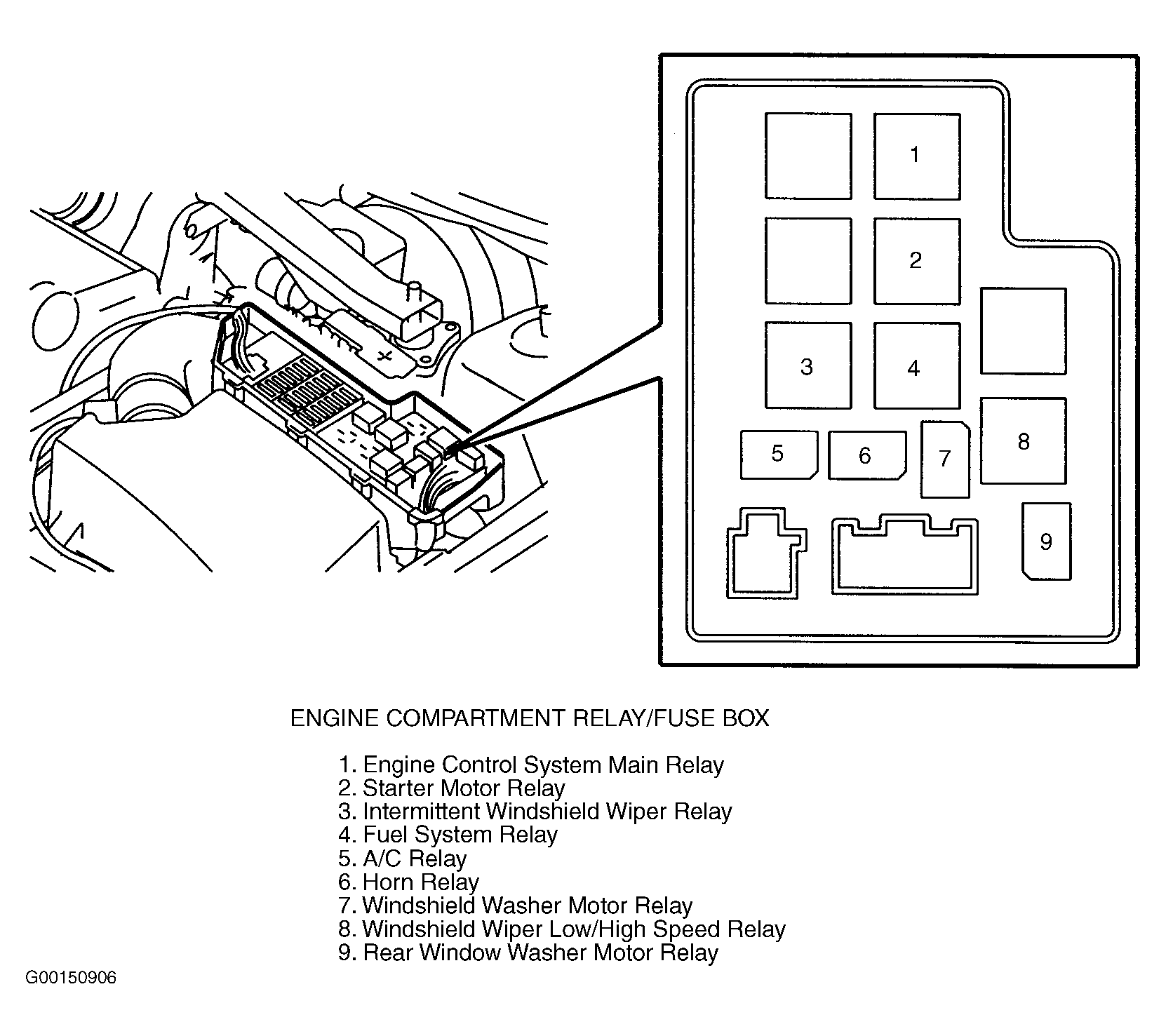

Fig 5: Engine Compartment Relay/Fuse Box (V70)

Courtesy of VOLVO CARS OF NORTH AMERICA.

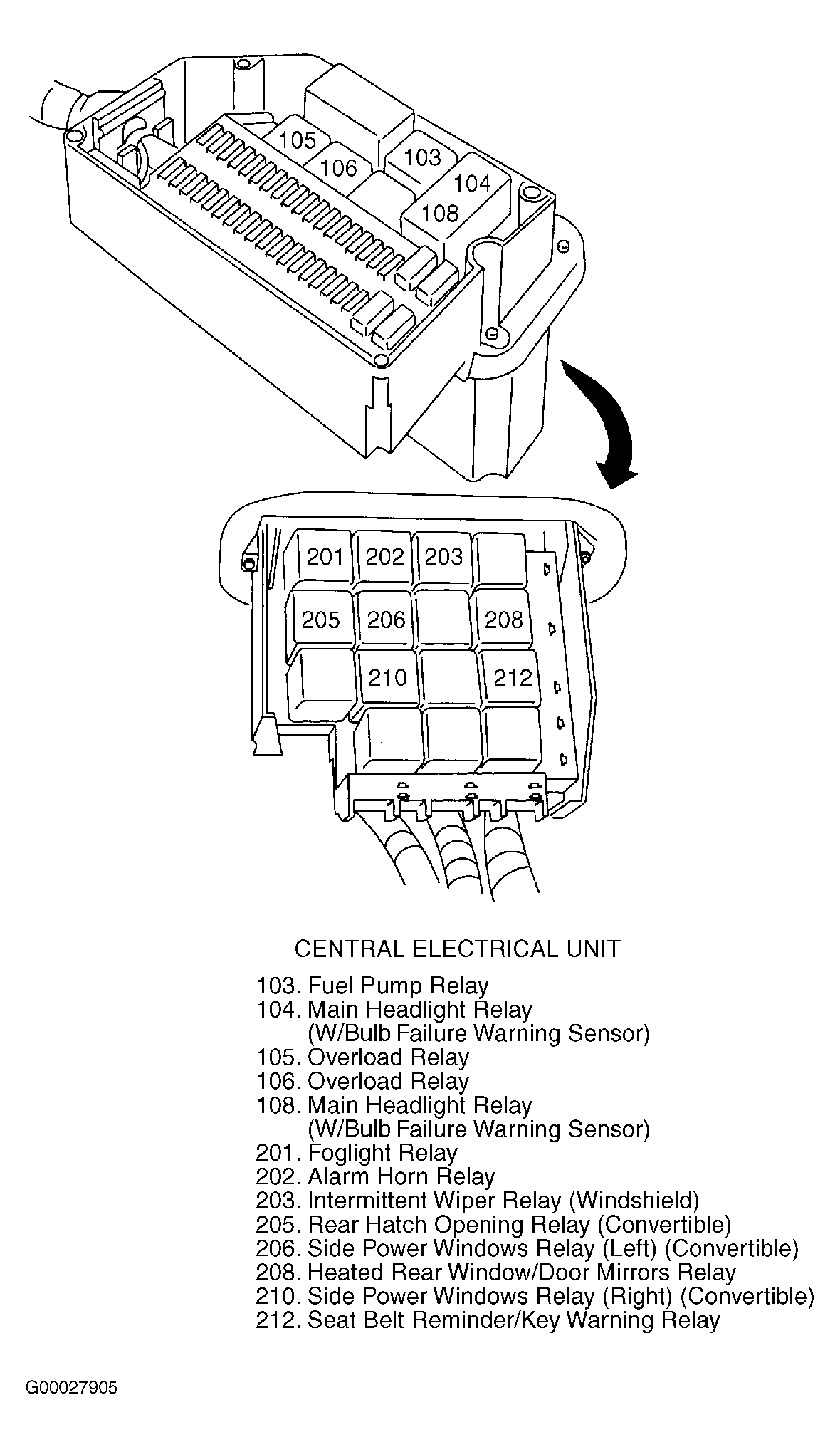

Fig 6: Central Electrical Unit

Courtesy of VOLVO CARS OF NORTH AMERICA.

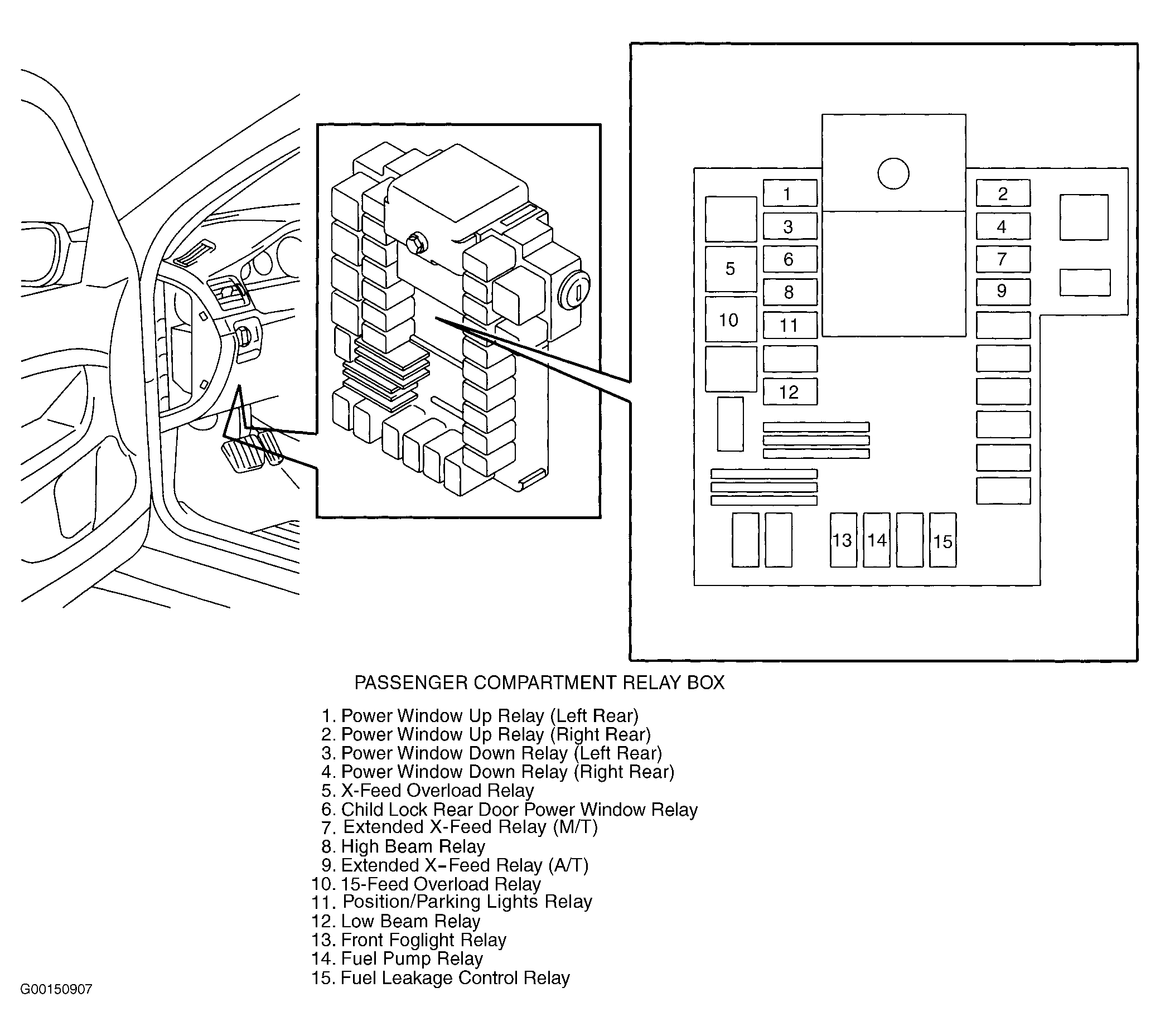

Fig 7: Passenger Compartment Relay Box

Courtesy of VOLVO CARS OF NORTH AMERICA.

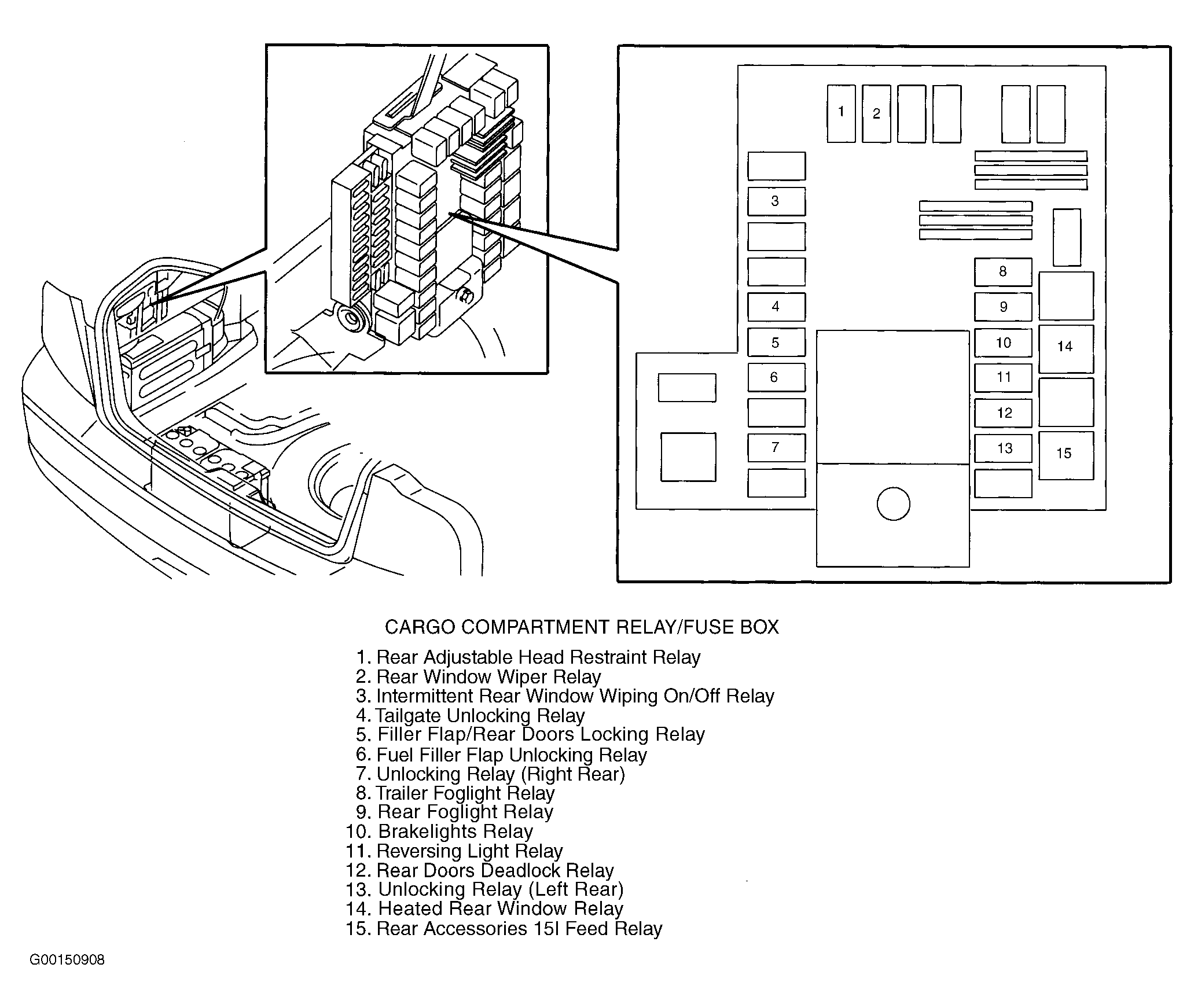

Fig 8: Cargo Compartment Relay/Fuse Box

Courtesy of VOLVO CARS OF NORTH AMERICA.

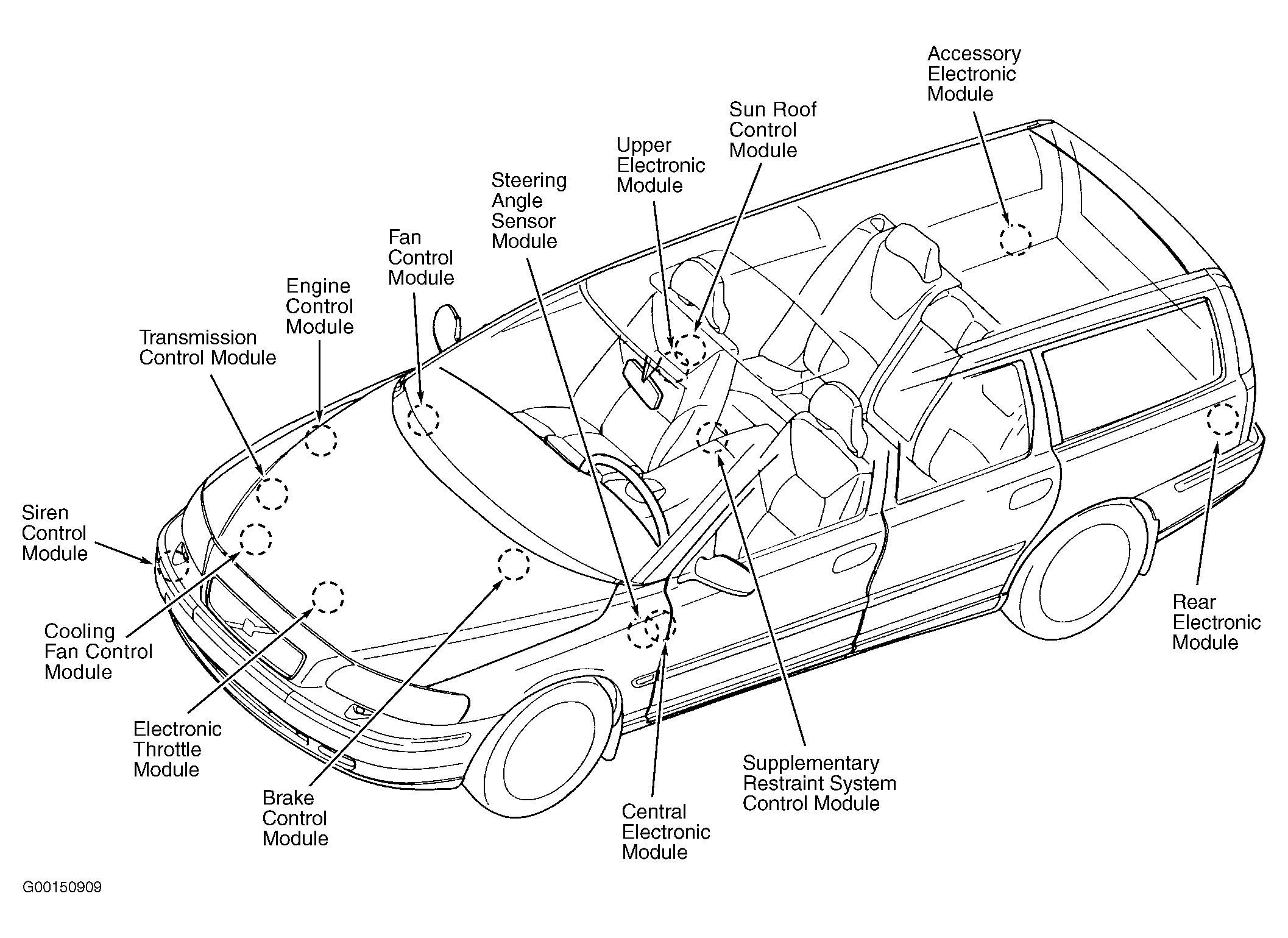

Fig 9: Vehicle Overview

Courtesy of VOLVO CARS OF NORTH AMERICA.
