Replacing Torque Control Arm: Preparation
Remove

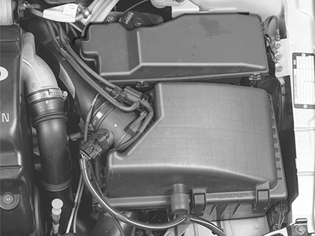

- the connector from the mass air flow (MAF) sensor and the turbocharger (TC) control valve.
- the turbocharger (TC) control valve from the air cleaner (ACL) cover. Move it to one side.
- the inlet hose between the turbocharger (TC) and the air cleaner (ACL) cover. Warm the connections to the air cleaner (ACL) cover with a hot-air gun. This will make removal easier.
- the inlet hose between the air cleaner (ACL) housing and the front panel.
- the air cleaner (ACL) cover from the air cleaner (ACL) housing.
- the air cleaner (ACL) housing.
