Electrical
›
Opening secondary locking, Example 2A
›
Open socket housing
Open socket housing

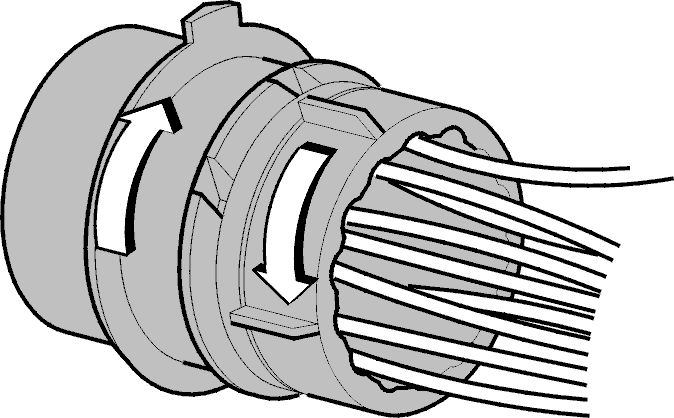

Fig 1: Identifying Open Socket Housing
Courtesy of VOLVO CARS OF NORTH AMERICA.
Open the socket housing secondary locking by turning the two rings shown in the illustration. A "click" indicates that the secondary locking has disengaged.
