Engine Compartment Distribution Box Connector End View (15/31_C1)

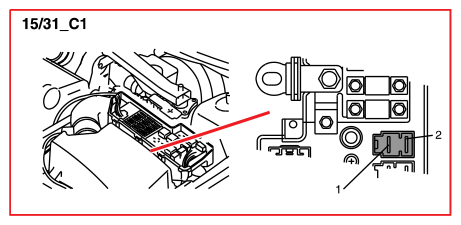

Fig 1: Engine Compartment Distribution Box Connector End View (15/31_C1)
G10827707Courtesy of VOLVO CARS CORPORATION
