Engine Compartment Distribution Box Connector End View (15/31_C2)

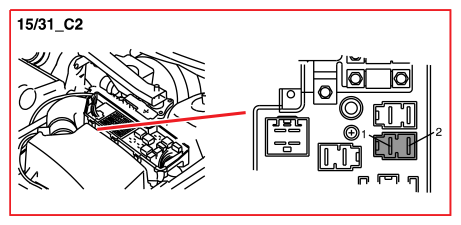

Fig 1: Engine Compartment Distribution Box Connector End View (15/31_C2)
G10827708Courtesy of VOLVO CARS CORPORATION
