Engine Compartment Distribution Box Connector End View (15/31_C3)

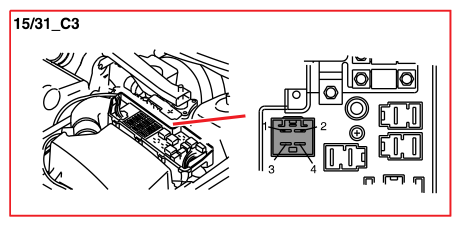

Fig 1: Engine Compartment Distribution Box Connector End View (15/31_C3)
G10827709Courtesy of VOLVO CARS CORPORATION
