Connector with passive locking

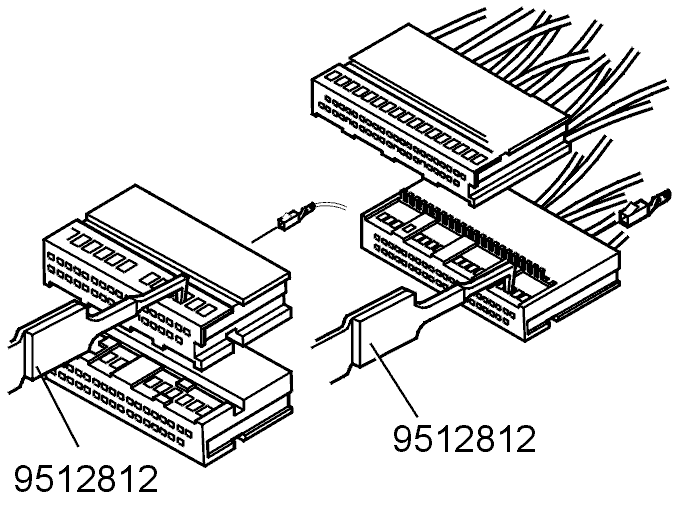

Fig 1: Identifying Cable And Cable Terminal Removal

Courtesy of VOLVO CARS OF NORTH AMERICA.

Separate the connector.

HINT: Use a radio screwdriver.

Press in the locking tab on the cable terminal and carefully pull out the cable and the cable terminal.

HINT: Use tool  9512812  or  9512637  .
