Sunroof Control Module SRM, V70 Connector End View (4/33)

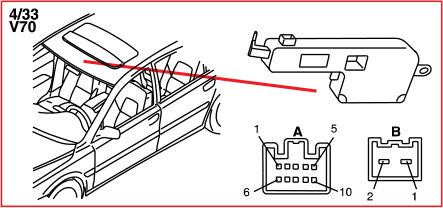

Fig 1: Sunroof Control Module SRM, V70 Connector End View (4/33)
G10843436Courtesy of VOLVO CARS CORPORATION
