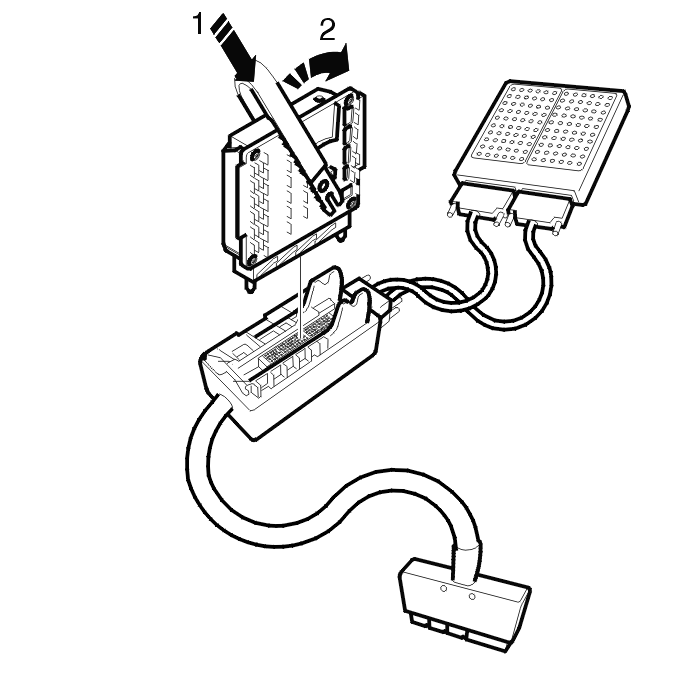

Adapter connection
Courtesy of VOLVO CARS OF NORTH AMERICA.
- Check that no pins or sockets are damaged on the connector.
- Gently press adapter
9511504
down into the grooves inside the control module box. Press to the limit position.
- Insert tool
9995722
around the adapter.
- Move the upper section of the tool forwards as far as it will go. Pull the tool up.
