Roof And Interior

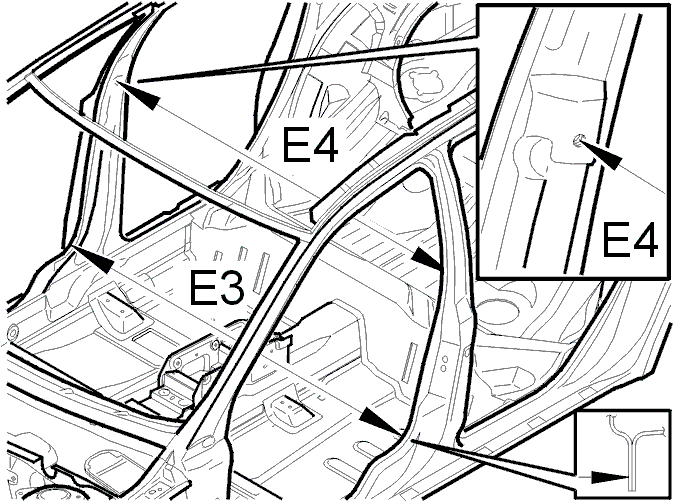

Fig 1: Body Interior Position Measurement Locations (1 Of 3)

Courtesy of VOLVO CARS OF NORTH AMERICA.

E3 = 1478 mm

E4 = 1428 mm

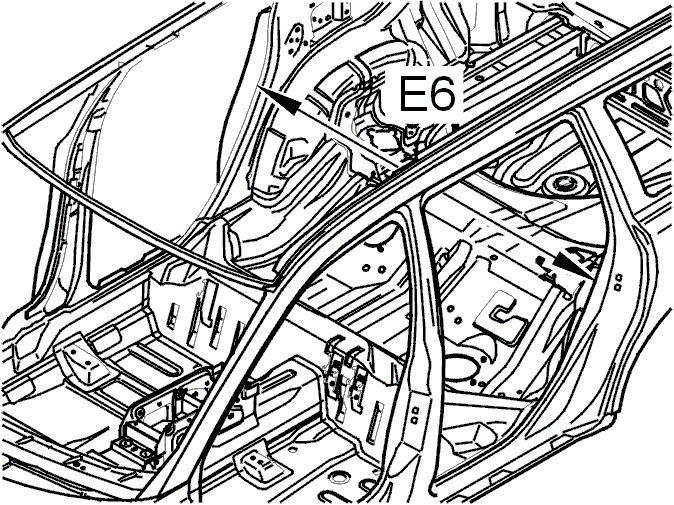

Fig 2: Body Interior Position Measurement Locations (2 Of 3)

Courtesy of VOLVO CARS OF NORTH AMERICA.

E6 = 1488 mm

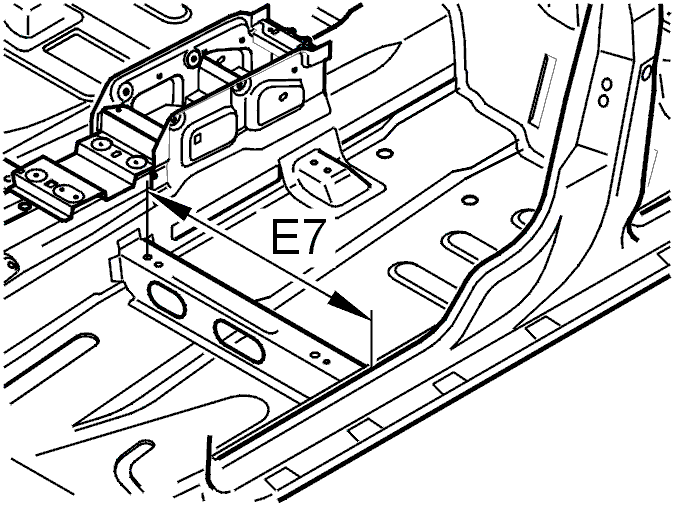

Fig 3: Body Interior Position Measurement Locations (3 Of 3)

Courtesy of VOLVO CARS OF NORTH AMERICA.

E7 = 581 mm
