Climate Control Module CCM, V70 Connector End View (3/112)

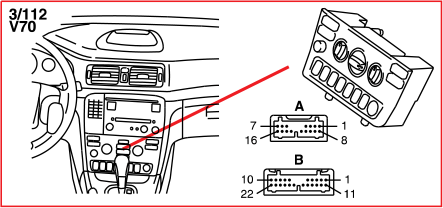

Fig 1: Climate Control Module CCM, V70 Connector End View (3/112)
G10843395Courtesy of VOLVO CARS CORPORATION
