Pressure Sensor, Climate Control System, V70 Connector End View (7/8)

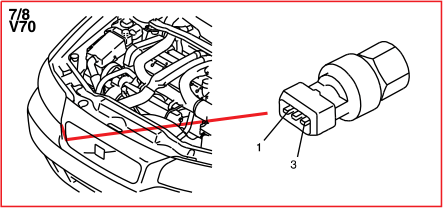

Fig 1: Pressure Sensor, Climate Control System, V70 Connector End View (7/8)
G10843525Courtesy of VOLVO CARS CORPORATION
