Installing cover

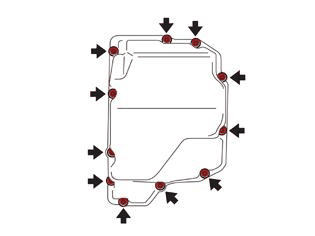

Fig 1: Locating Cover Bolts

GLL150173

Courtesy of VOLVO CARS OF NORTH AMERICA.

NOTE:

Ensure that the sealant is not rubbed when the cover is installed.

Use new screws.

Tighten:

alternately to light contact
see: Summary of tightening torques for specific components .
