Installing The Position Sensor

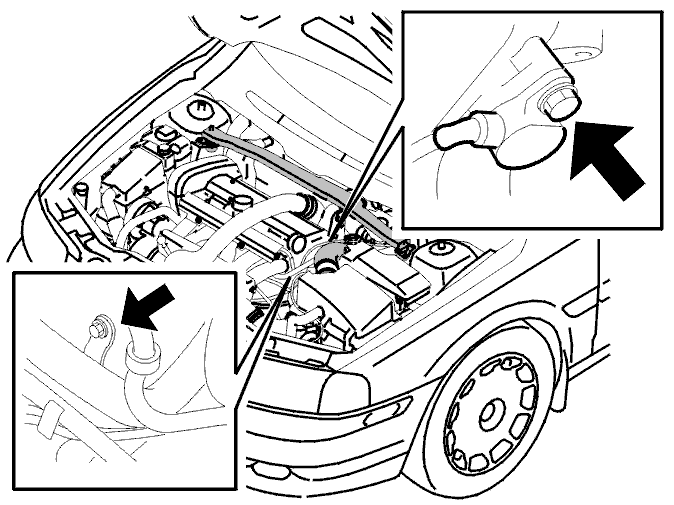

Fig 1: Camshaft Position Sensor

GLL103045

Courtesy of VOLVO CARS CORPORATION

Install:

the sensor
screws. Tighten.

Connect the connector for the sensor.
