Supplemental Restraint System Module (SRS) - Removal And Installation
›
Restraints
›
Supplemental Restraint System Module (SRS), Replacing
›
Removal
›
SRS Control Module
SRS Control Module

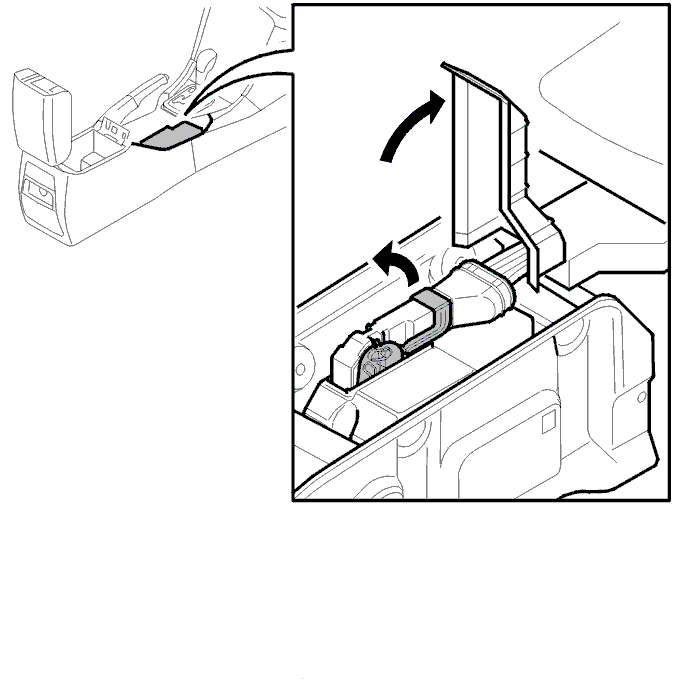

Fig 1: Identifying Boot & Connector
Courtesy of VOLVO CARS CORPORATION
Push the boot to one side and disconnect the connector.

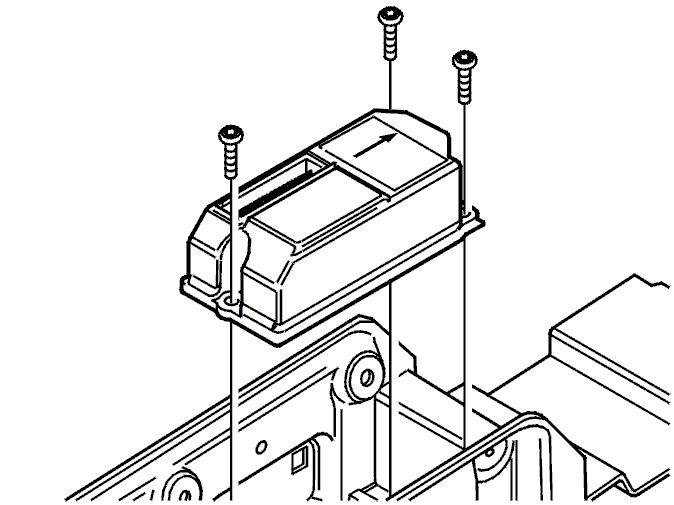

Fig 2: 3 Control Module Screws
Courtesy of VOLVO CARS CORPORATION
Remove the 3 control module screws (Torx 30).
Lift the control module.
