Steering Wheel Module & Keypad Unit - Removal & Installation
›
Steering
›
Keypad unit, steering wheel, replacing
›
Keypad
Keypad unit, steering wheel, replacing: Keypad

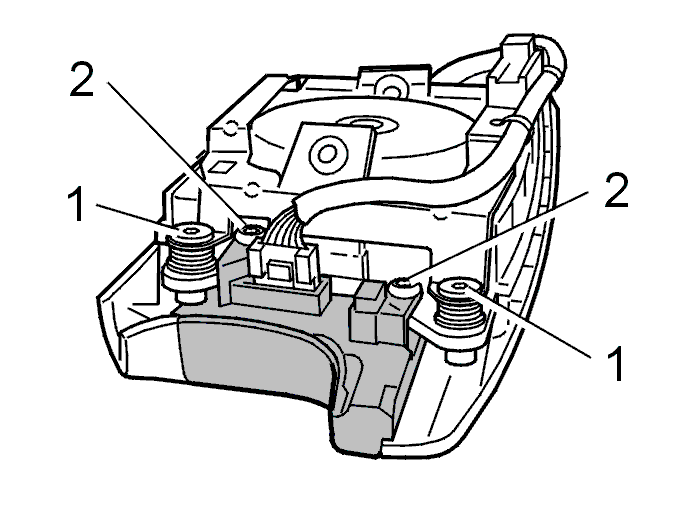

Fig 1: Steering Wheel Keypad Unit, Bracket And Screws
Courtesy of VOLVO CARS OF NORTH AMERICA.
Remove:
the four screws for the bracket (1) (10 Nm)
the two screws for the keypad kit x2 (2) (2 Nm)
the two connectors for the keypad.
Install in reverse order
