Removal Of Steering Column Covers

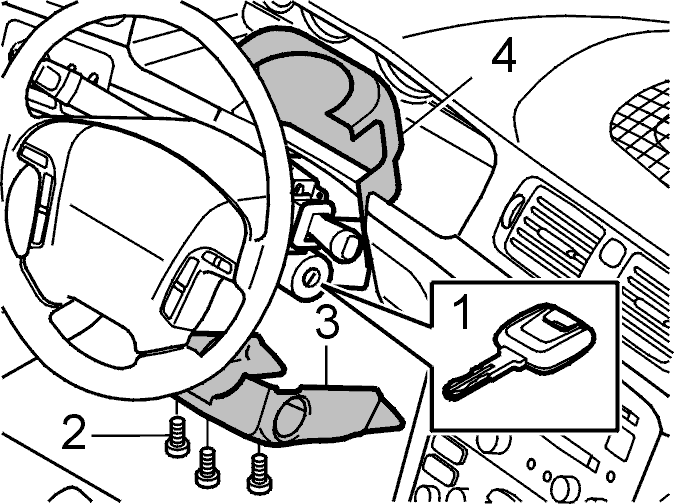

Fig 1: Steering Column Covers

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Remove the ignition key (1).
• Remove the three screws (2).
• Press in the snap-in fixings and remove the lower steering column cover (3).
• Turn up the upper steering column cover (4).
