Removing the windshield: Preparations

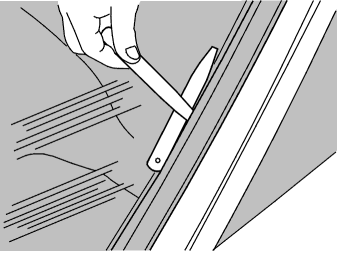

Fig 1: Identifying Removal Of Strips Along A Pillars & Roof

Courtesy of VOLVO CARS OF NORTH AMERICA.

Open the hood.

Remove:

• the cowl according to Plenum chamber
• the rear view mirror according to The inner rear view mirror
• the roof trim according to Roof trim .
  NOTE: Ensure that the molding is correctly removed. It is important that this is done in order to eliminate any problems when installing.

Remove:

• the sun visor and brackets
• interior lighting
• the mounting for the headlining at the A-post.
  NOTE: Do not damage any components when removing the headlining mounting with the extra clamp.
