VVT-unit, replacing/adjusting: Check

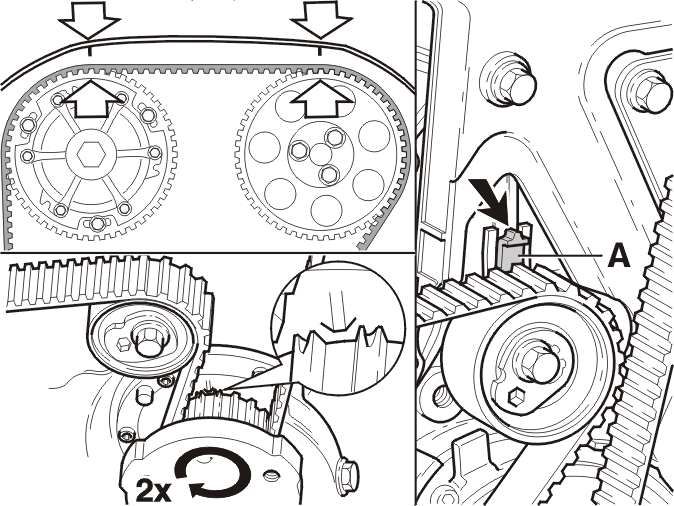

Fig 1: Checking Markings On Crankshaft And Camshaft Pulley Correspond

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Press the belt to check that the indicator on the tensioner moves easily.
• Position the upper timing cover.
• Turn the crankshaft two turns. Check that the markings on the crankshaft and camshaft pulley correspond
  NOTE: Check that the indicator on the belt tensioner is within the marked area.
• Remove the upper timing cover.
