Rear Section, Replacing

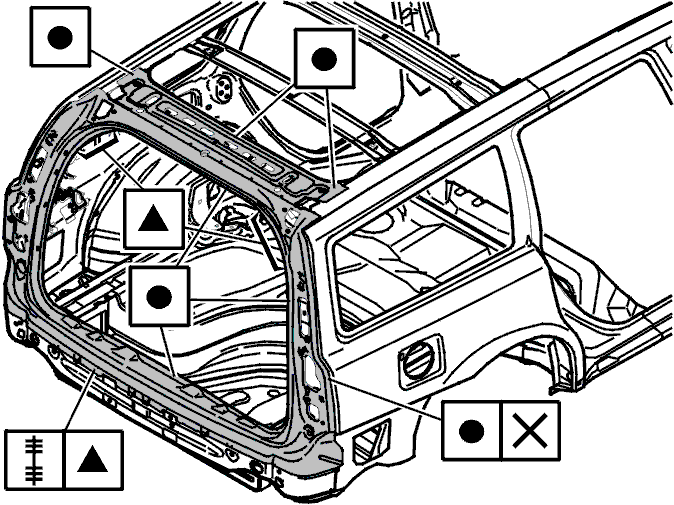

Fig 1: Rear Roof Member Weld Locations

Courtesy of VOLVO CARS OF NORTH AMERICA.

Secure the rear roof member.

Check the measurements.

Test install and check the alignment of the outer rear section.

Weld several points.

Remove the outer rear section.

Weld into place.

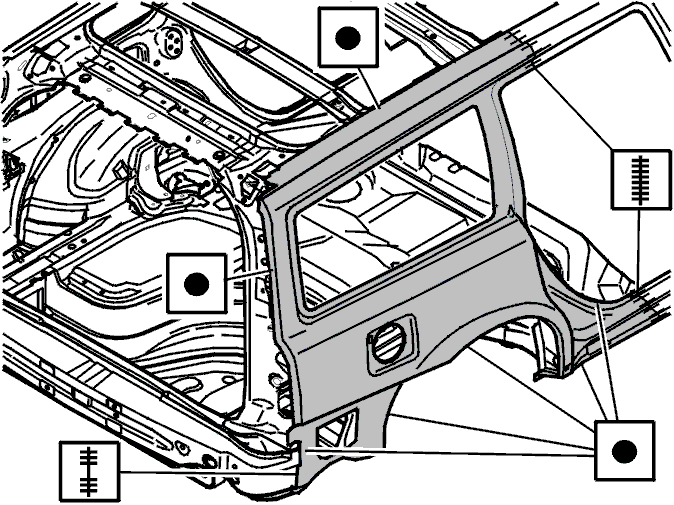

Fig 2: Outer Rear Fender Panel Weld Locations

Courtesy of VOLVO CARS OF NORTH AMERICA.

Secure the rear fender.

Check the alignment with the outer rear section.

Weld into place.

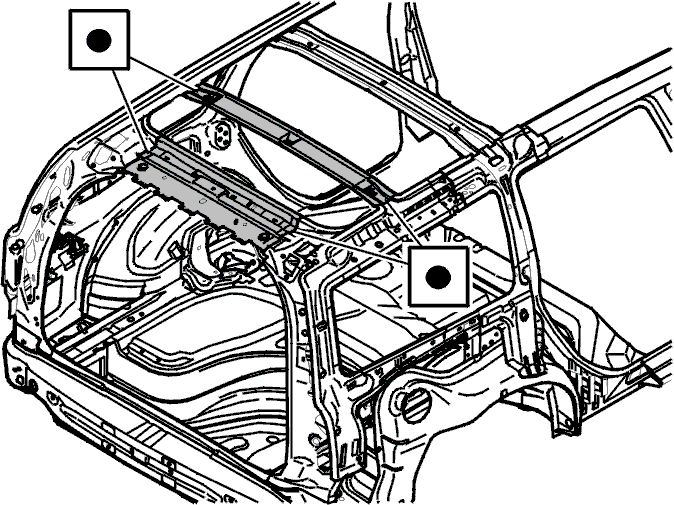

Fig 3: Rear Subframe Weld Locations

Courtesy of VOLVO CARS OF NORTH AMERICA.

Secure the subframe.

Weld several points.

Check the measurements.

Test install and check the alignment of the outer rear section.

Remove the outer rear section.

Weld into place.
