Power Driver Seat Module PSM Connector End View (4/52)

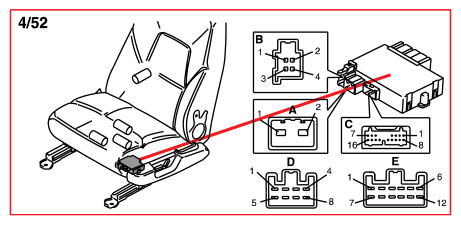

Fig 1: Power Driver Seat Module PSM Connector End View (4/52)
G10908921Courtesy of VOLVO CARS CORPORATION
