Checking The Control Module For Open-Circuits

• Remove relay 2/115.

  Check the driver circuit for the relay coil for an open-circuit as follows: activate the relay driver. Measure the voltage between terminals #1 and #2 on the relay base.

  HINT: The voltage between terminals #1 and #2 should be battery voltage.

  HINT: If the value deviates excessively, check the voltage between terminal #2 and the battery voltage and between terminal #1 and ground. Both should equal battery voltage.

  HINT: Check for an open-circuit.

  HINT: Do not forget to check that the power supply to the control module is OK.

  Other information:

  • For -2004, see: RELAY/FUSE BOX CARGO COMPARTMENT/REAR ELECTRONIC MODULE (REM), REPLACING
  • For 2005-, see: REAR ELECTRONIC MODULE (REM), REPLACING .
  • see CHECKING WIRING AND TERMINALS .
  Fig 1: Identifying VCT2000 Diagnostic Tool Symbol In VIDA

  Courtesy of VOLVO CARS CORPORATION

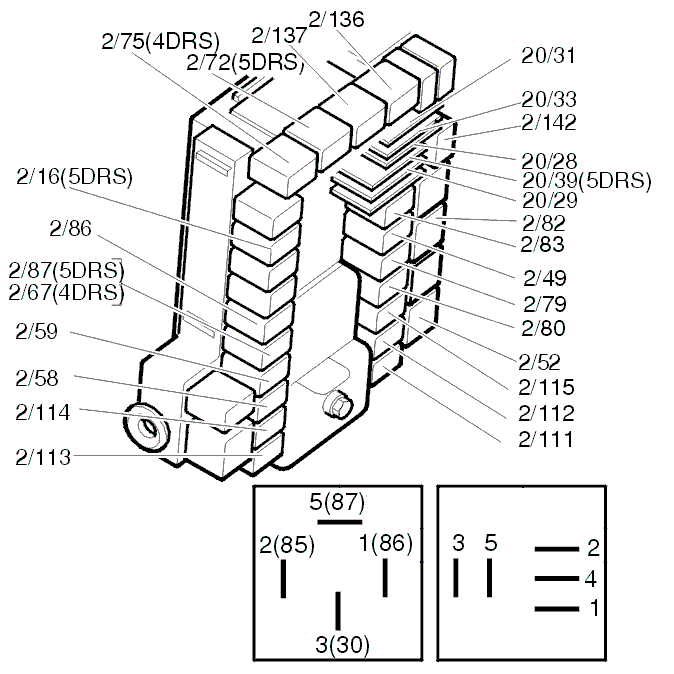

  Fig 2: Identifying Relays

  Courtesy of VOLVO CARS CORPORATION

Was a fault detected?

• YES

  Refer to VERIFICATION

• NO

  Refer to CHECKING THE CONTROL MODULE FOR SHORT-CIRCUITS
