Transferring Components During Transmission Replacement (43-51)

Publication date: 2006-06-06
Reference number: 43-51

TRANSFERRING COMPONENTS DURING TRANSMISSION REPLACEMENT

TECHNICAL SERVICE BULLETIN

Reference Number(s): 43-51, Date of Issue: June 06, 2006

VOLVO:	2001 - S60, V70, XC70, S80, XC90
GROUP:	43
NO.:	51

SERVICE INFORMATION

When replacing a transmission, follow the VIDA instructions for transferring parts to the new unit. The brackets highlighted here are part of the passive safety system designed to improve crash performance by helping to steer the powertrain in the correct direction during some crash situations.

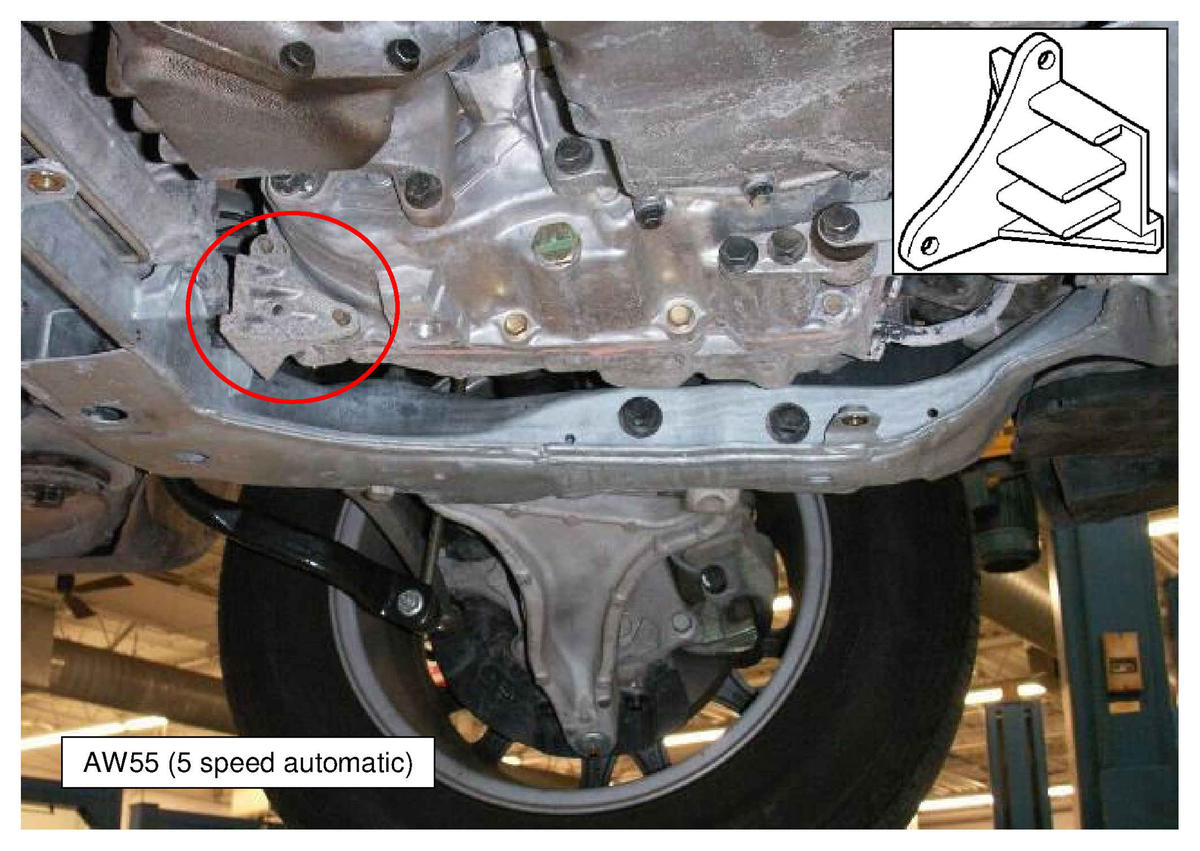

Fig 1: View Of Bracket (AW55)

Courtesy of VOLVO CARS OF NORTH AMERICA.

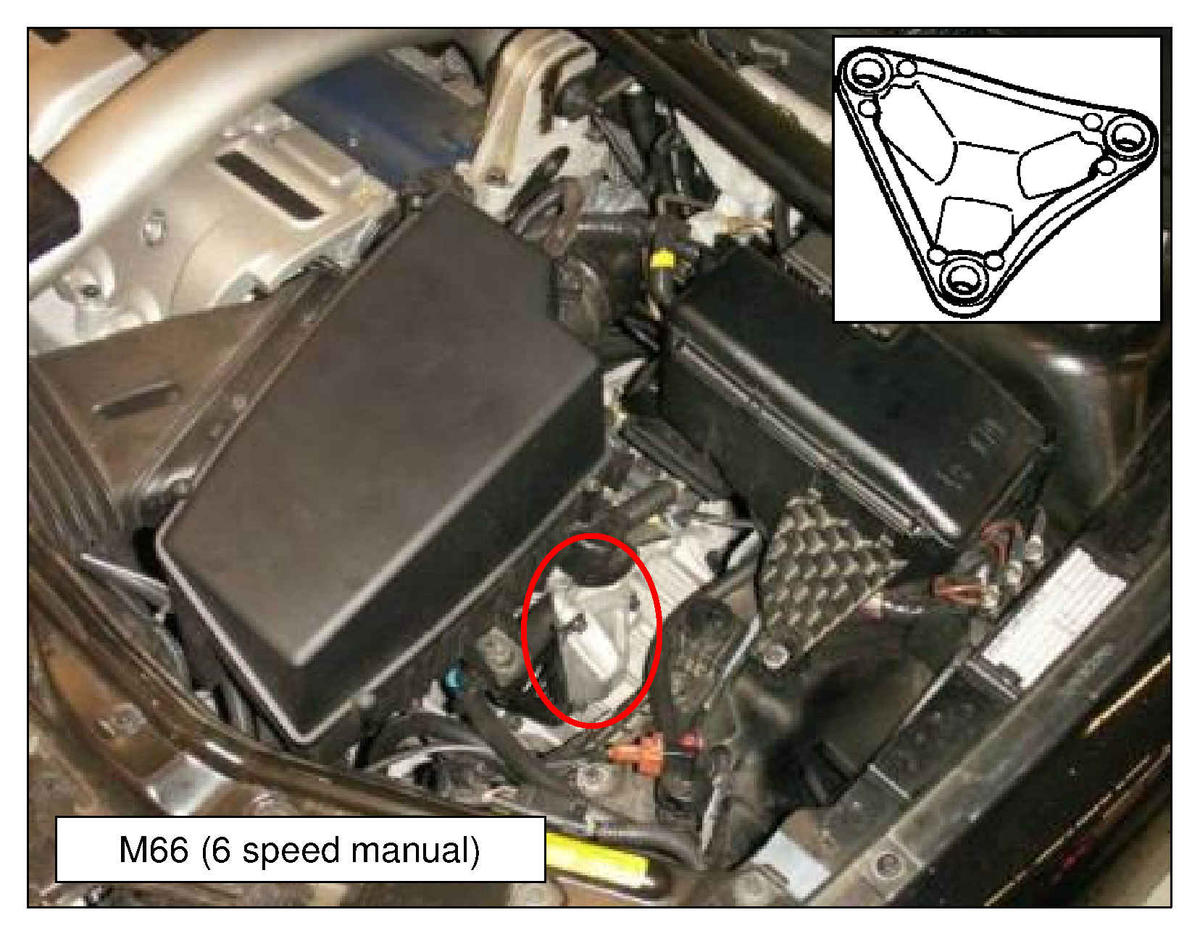

Fig 2: View Of Bracket (M66)

Courtesy of VOLVO CARS OF NORTH AMERICA.

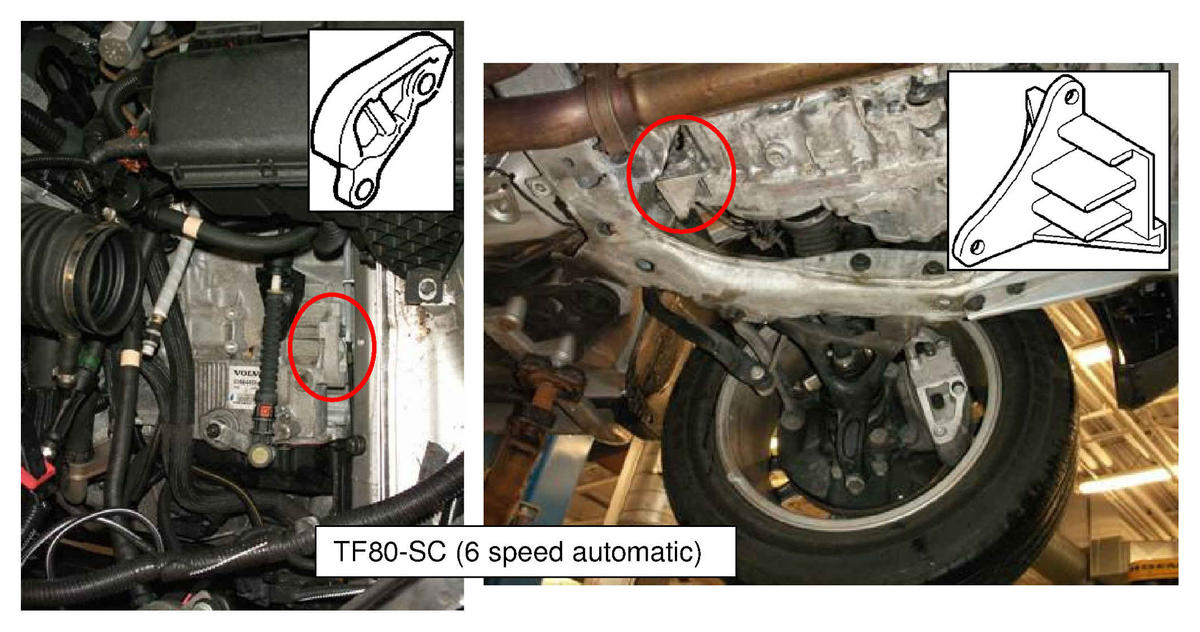

Fig 3: View Of Bracket (TF80-SC)

Courtesy of VOLVO CARS OF NORTH AMERICA.
