Removing Engine Compartment Components

Remove the air cleaner housing ACL assembly with the intake pipe. See Fig 1 . Remove the battery and battery shelf.

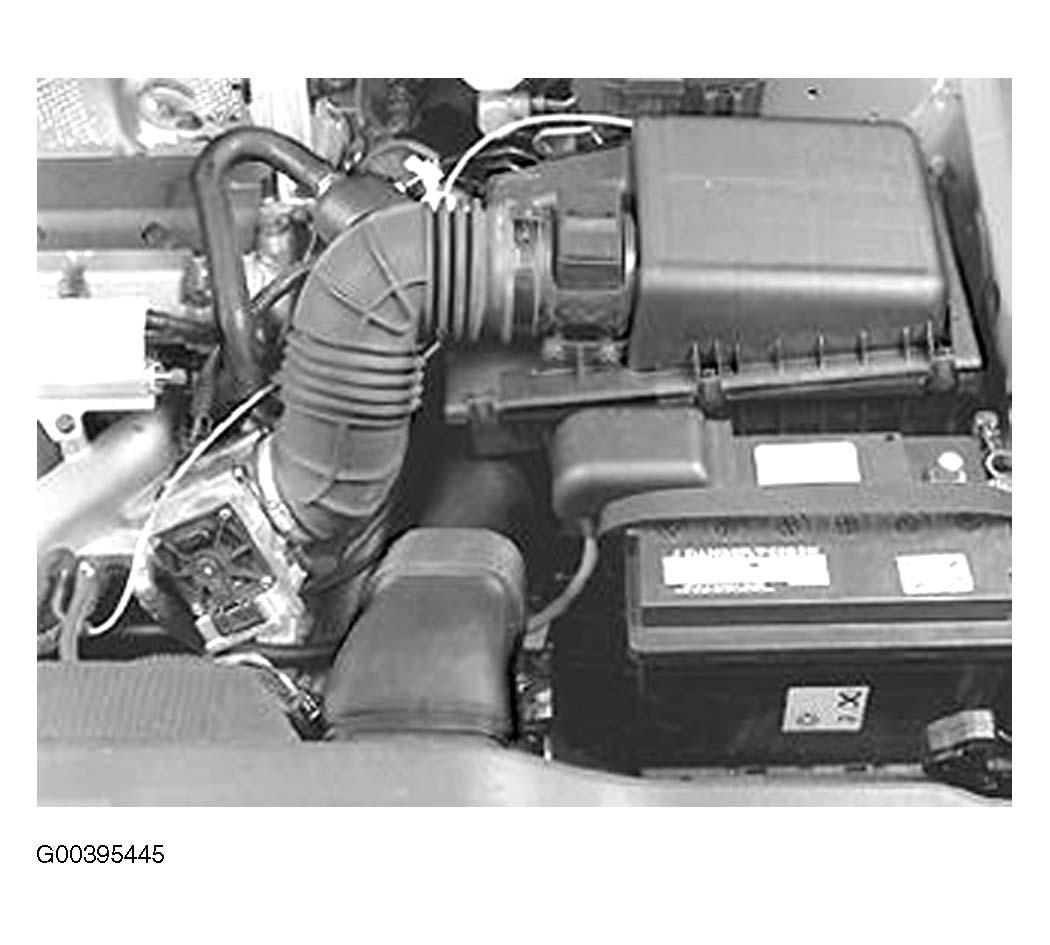

Fig 1: Locating Air Cleaner Housing

Courtesy of VOLVO CARS OF NORTH AMERICA.
