Installation of steering column covers

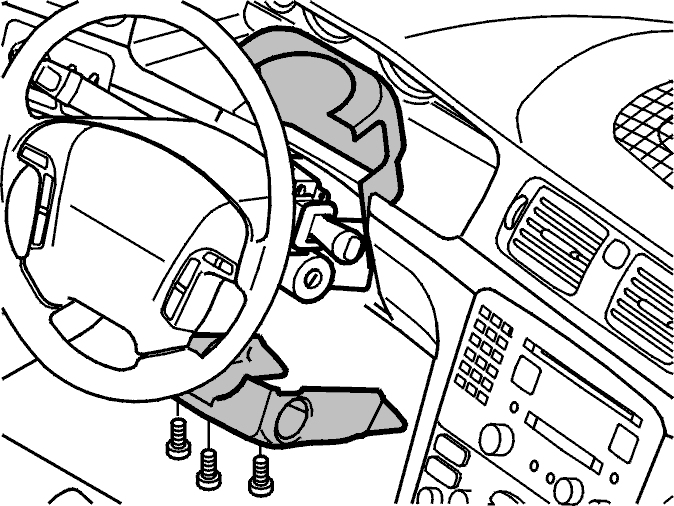

Fig 1: Identifying Steering Column Covers

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Install the lower steering column cover.
  NOTE: Ensure that no wires become jammed.
• Install the screws for the lower steering column cover.
• Fold down the upper steering column cover and press tight its snap-in attachments into the lower steering column cover.
  NOTE: Ensure that the gaiters around the control levers are correctly positioned against the column covers.
