Side Body Dimensions

Fig 1: Body Dimension Measuring Point Symbols
GLL103313Courtesy of VOLVO CARS OF NORTH AMERICA.

The dimensions in the table are listed as follows:

Symbol number 1 means that the measurement is taken from the center.

Symbol number 2 means that the measurement is taken from one edge.

GLL103386Courtesy of VOLVO CARS OF NORTH AMERICA.

Symbol number 3 means that the measurement is taken from a cut mark. Measurements are taken from the bottom of the recess. See the illustration above.

If only one measuring point symbol is displayed, the symbol applies to both measuring points. Otherwise the symbols are shown on each side of the dimension in the illustration.

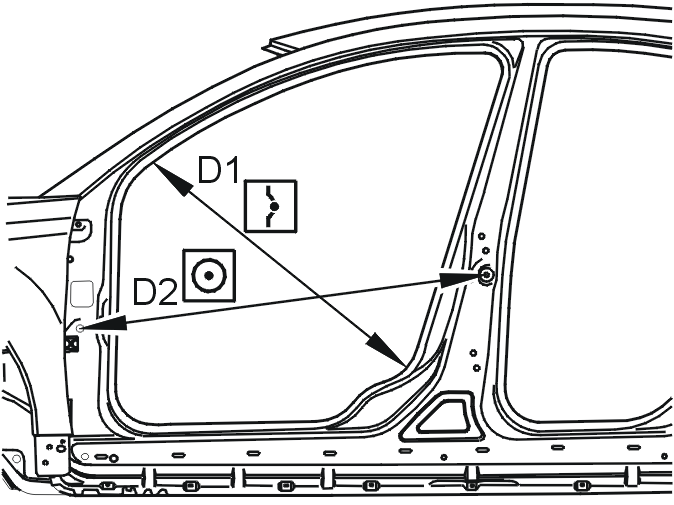

Fig 2: Front Door Opening Measurement Points
GLL140117Courtesy of VOLVO CARS OF NORTH AMERICA.

D1 = 863 mm

D2 = 1082 mm

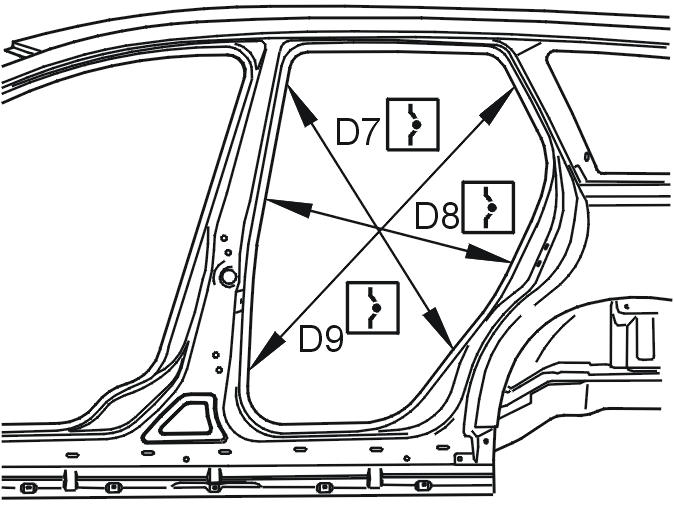

Fig 3: Rear Door Opening Measurement Points
GLL142117Courtesy of VOLVO CARS OF NORTH AMERICA.

D4 = 809 mm

D5 = 698 mm

D6 = 908 mm

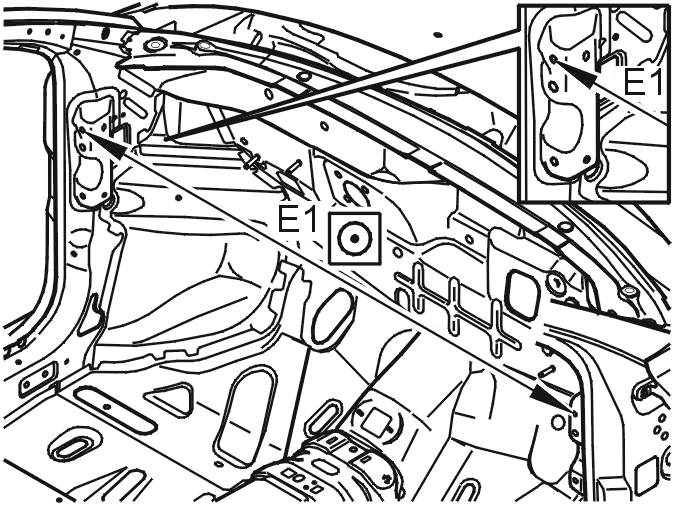

Fig 4: Inner Body Position Measurement Points - Front (1 Of 2)
GLL142118Courtesy of VOLVO CARS OF NORTH AMERICA.

E1 = 1328 mm

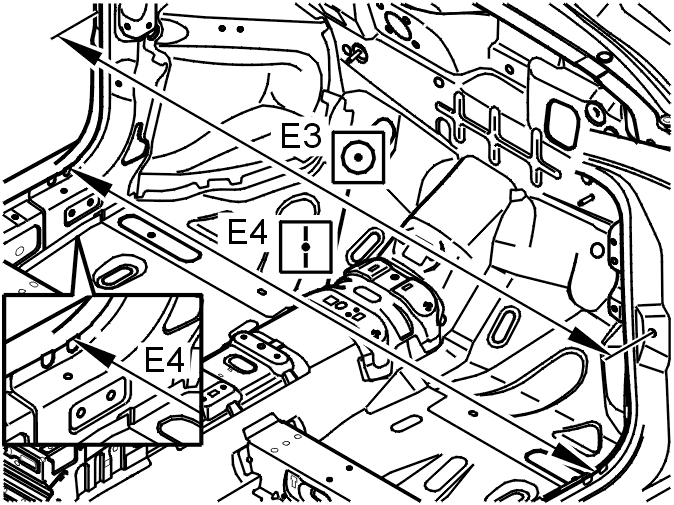

Fig 5: Inner Body Position Measurement Points - Front (2 Of 2)
GLL140119Courtesy of VOLVO CARS OF NORTH AMERICA.

E3 = 1493 mm

E4 = 1435 mm

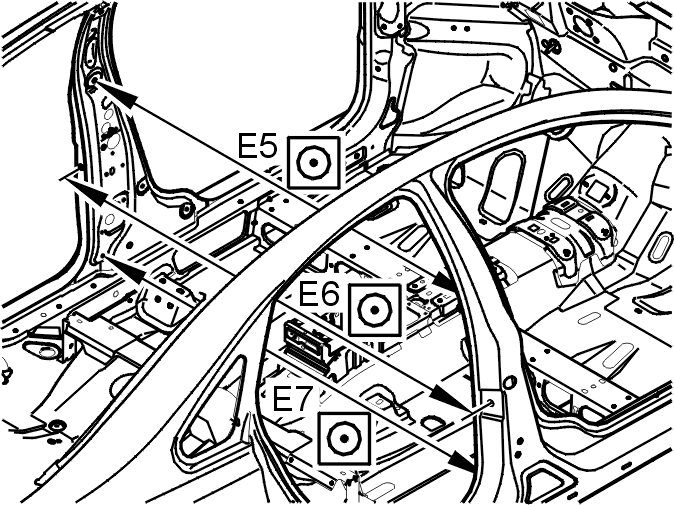

Fig 6: Inner Body Position Measurement Points - Center
GLL140120Courtesy of VOLVO CARS OF NORTH AMERICA.

E5 = 1402 mm

E6 = 1513 mm

E7 = 1415 mm

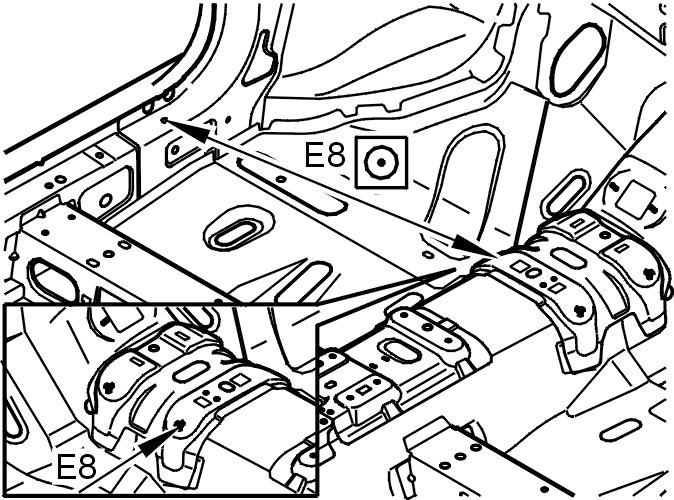

Fig 7: Inner Body Position Measurement Points - Rear (1 Of 2)
GLL140121Courtesy of VOLVO CARS OF NORTH AMERICA.

E8 = 602 mm

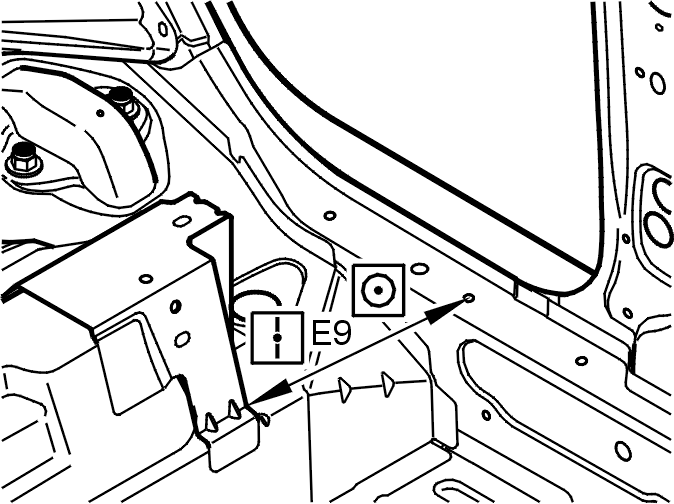

Fig 8: Inner Body Position Measurement Points - Rear (2 Of 2)
GLL140122Courtesy of VOLVO CARS OF NORTH AMERICA.

E9 = 225 mm
