Removing the right engine mounting

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

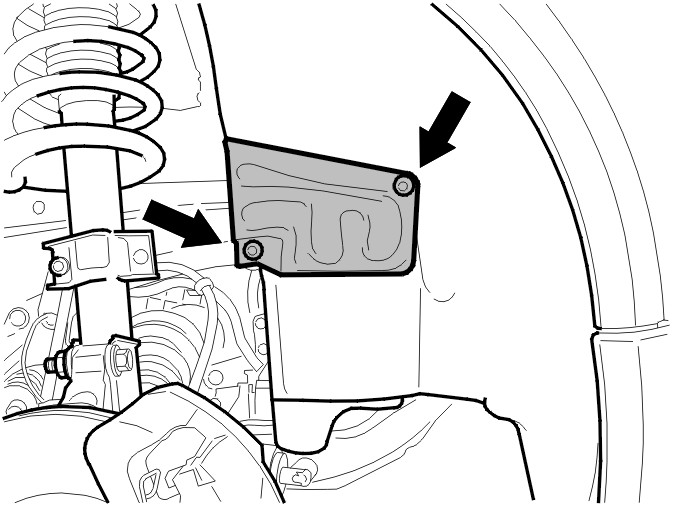

Fig 1: Identifying Fender Liner Plastic Nuts And Protective Plate

Courtesy of VOLVO CARS OF NORTH AMERICA.

Slacken off the right lower front part of the fender liner.

Remove:

the plastic nuts on the fender liner
the protective plate.

Bend out the fender liner.

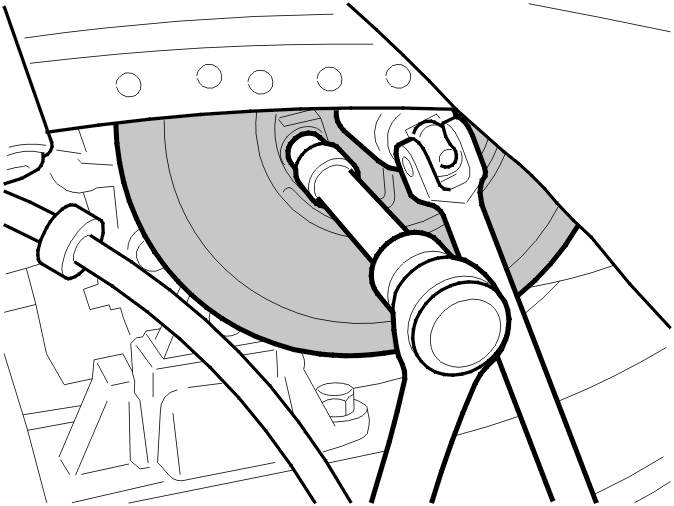

Fig 2: Counterholding Crankshaft Central Nut

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the 4 screws for the vibration damper. Counterhold the crankshaft central nut.

Remove the vibration damper.

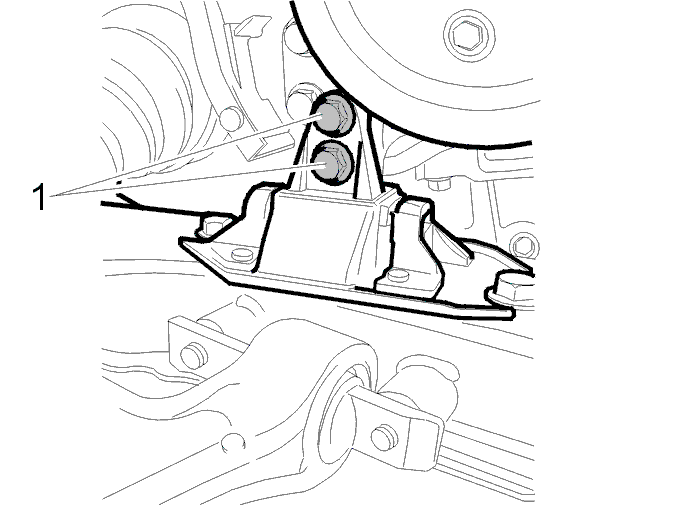

Fig 3: Identifying Right-Hand Engine Mounting Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the 2 screws for the right hand engine mounting. (1)
