Installing the spring strut

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

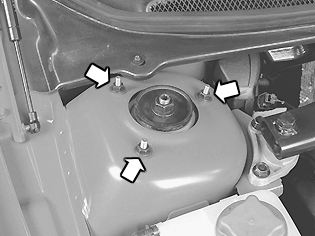

Fig 1: Nuts Holding Spring Strut Mounting In Bodywork

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install

the spring strut in the car body with new nuts . Tighten to 25 Nm .

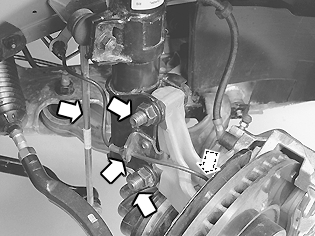

Fig 2: Anti-Roll Bar Link

Courtesy of VOLVO CARS OF NORTH AMERICA.

the spring strut to the wheel spindle. Use new screws and new nuts .
Adjust the spring strut and wheel spindle to the measured value. See Wheel knuckle / spring strut, calibrating .

NOTE:
When replacing the shock absorber, the wheel camber alignment must be adjusted. See Wheel alignment, checking / adjusting .

Tighten to 105 Nm . Angle-tighten 90° . Use bevel protractor 9512050
the anti-roll bar link to the spring strut. Use a new nut . Tighten to 50 Nm . Counterhold with a Torx wrench to prevent damage to the boot
the ABS sensor.
NOTE:
Ensure that the ABS sensor seat in the wheel spindle is completely clean. Clean the ABS sensor with a soft brush. Tighten the sensor. Tighten to 10 Nm .
the ABS sensor cable
the wheel. See Installing wheels .
