Ignition Lock: Removal

Fig 1: Identifying Ignition Switch In OFF Position

Courtesy of VOLVO CARS CORPORATION

Remove the following items:

• Driver side register, See DRIVER SIDE REGISTER
• Instrument panel lower, See INSTRUMENT PANEL LOWER
• General audio player module, see GENERAL AUDIO PLAYER MODULE
• Combined instrument panel, see COMBINED INSTRUMENT PANEL

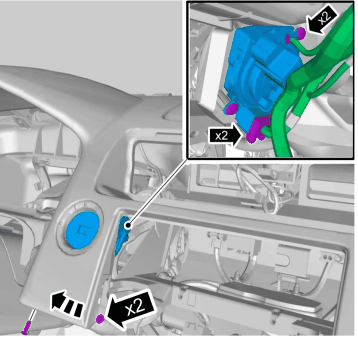

Fig 2: Locating Ignition Lock

Courtesy of VOLVO CARS CORPORATION

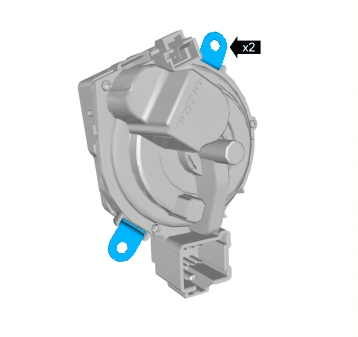

Fig 3: Identifying Ignition Lock

Courtesy of VOLVO CARS CORPORATION
