Rear Windshield Frame, Dimensions Chart

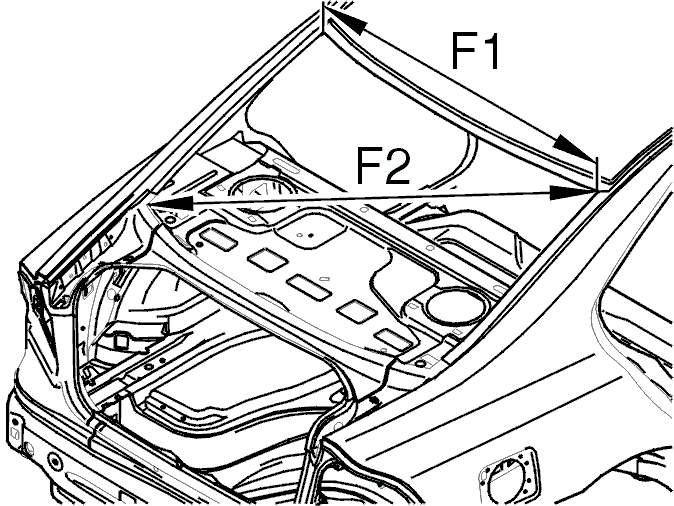

Fig 1: Rear Window Opening Dimensions And Measurement Locations (1 Of 3)

Courtesy of VOLVO CARS OF NORTH AMERICA.

F1 = 1096 mm

F2 = 1322 mm

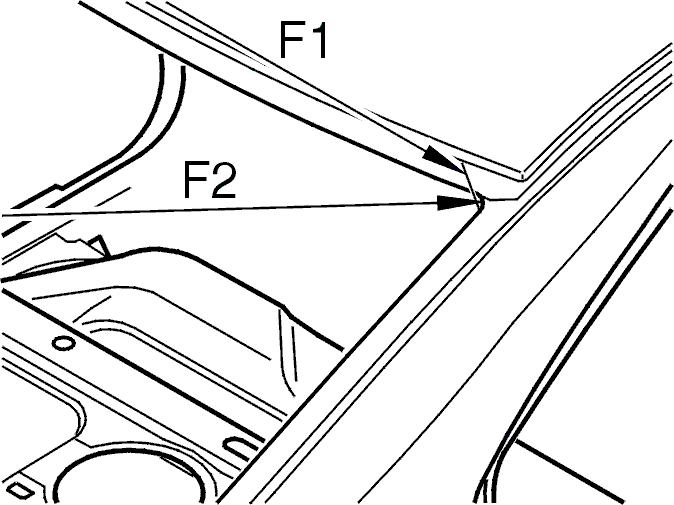

Fig 2: Rear Window Opening Dimensions And Measurement Locations (2 Of 3)

Courtesy of VOLVO CARS OF NORTH AMERICA.

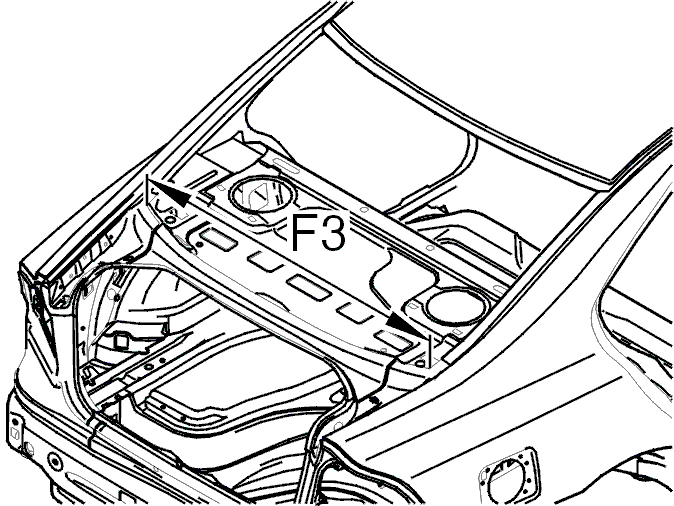

Fig 3: Rear Window Opening Dimensions And Measurement Locations (3 Of 3)

Courtesy of VOLVO CARS OF NORTH AMERICA.

F3 = 1122 mm
