Removing Position Sensor

Fig 1: Identifying Pipe Between Air Cleaner And Throttle Body

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove

• the pipe between the air cleaner (ACL) and the throttle body (TB) put to one side
• the throttle body (TB), to one side

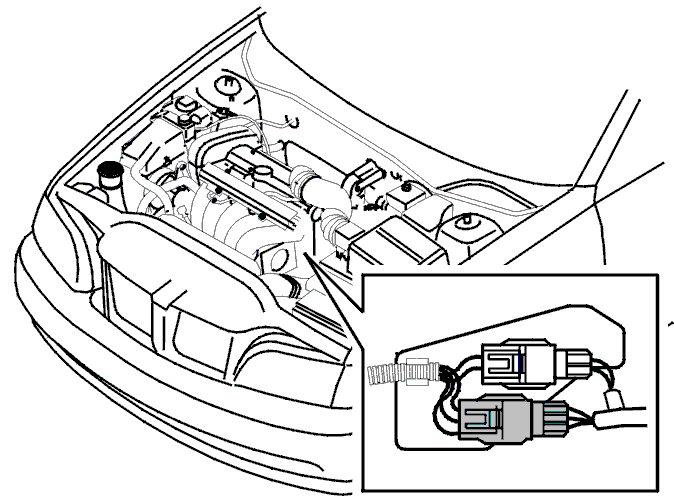

Fig 2: Identifying Position Sensor Connector

Courtesy of VOLVO CARS OF NORTH AMERICA.

• the sensor.

Expose the wiring and disconnect the connector.
