Vehicles With Fuel Pump Module Located On Fuel Tank

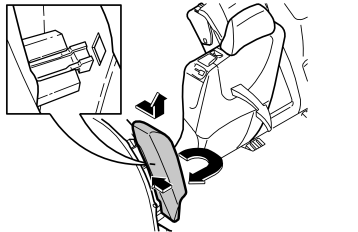

Fig 1: Folding Rear Seat Backrest Forward

Courtesy of VOLVO CARS OF NORTH AMERICA.

Open Luggage Compartment Lid/tailgate

Remove:

Remove the right part of the backrest

Use new bolt, 1 pc. M10.

Tighten with 50 Nm.

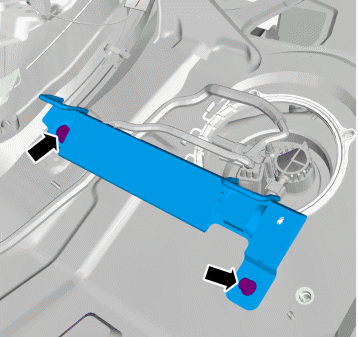

Fig 2: Identifying Child Seat Bracket

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove bracket for child seat from the floor.

Use new bolt and nut.

1 pc. M10, tighten with 50 Nm.

1 pc. M12, tighten with 80 Nm.

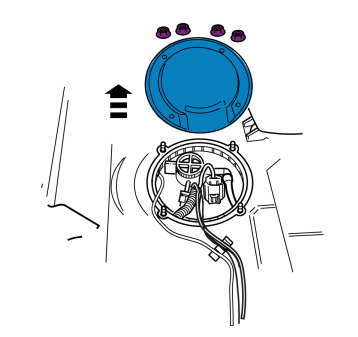

Fig 3: Identifying Right Floor Hatch

Courtesy of VOLVO CARS OF NORTH AMERICA.

Move aside the insulating mat.

Remove the right floor hatch over fuel tank.
