Control panel

Remove:

side panel according to Side panel .

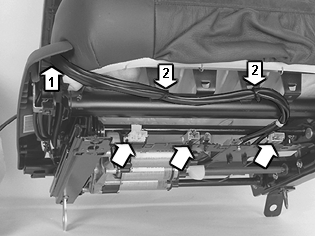

Fig 1: Control Panel Connectors And Tie Straps

GLL110061

Courtesy of VOLVO CARS OF NORTH AMERICA.

three connectors.
two tie straps (2).

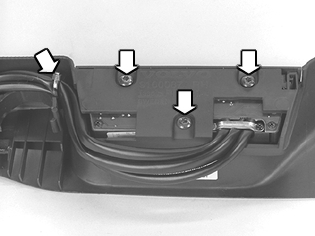

Fig 2: Control Panel Tie Straps And Screws

GLL110062

Courtesy of VOLVO CARS OF NORTH AMERICA.

a tie strap.
three screws.

Lift control panel straight up.

Remove control panel.

Install:

In reverse order.
