Installing the cable conduit

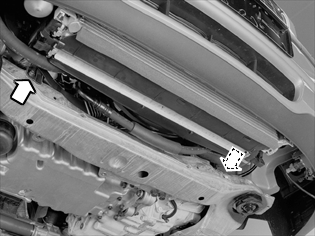

Fig 1: Fuel Line For Heater And Sub-Frame

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

• auxiliary heater/parking heater to the bracket in the sub-frame and the fuel line to the brackets (if fitted to the vehicle)
• the front splash guard
• the splash guard under the engine
• the wheels. See Installing wheels .
