Front Section, Dimensions Chart

Fig 1: Engine Compartment And Related Bracket Position Dimensions And Measurement Locations (1 Of 6)

Courtesy of VOLVO CARS OF NORTH AMERICA.

A1 = 1490 mm

A2 = 709 mm.

A3 = 869 mm

Fig 2: Engine Compartment And Related Bracket Position Dimensions And Measurement Locations (2 Of 6)

Courtesy of VOLVO CARS OF NORTH AMERICA.

A4 = 946 mm

A5 = 1282 mm

A6 = 1350 mm

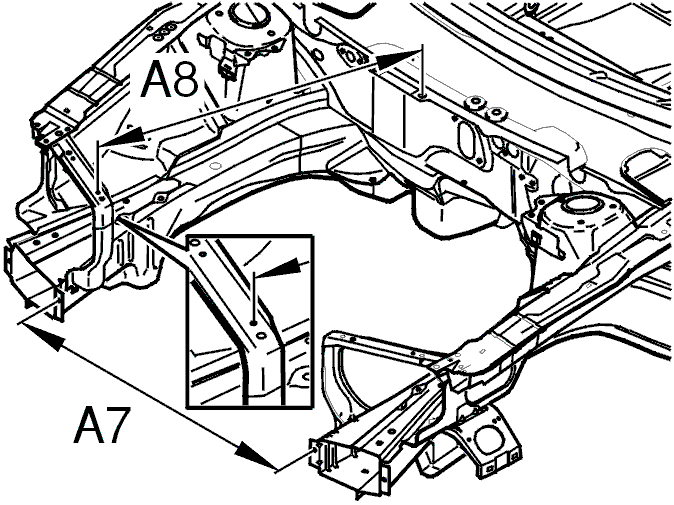

Fig 3: Engine Compartment And Related Bracket Position Dimensions And Measurement Locations (3 Of 6)

Courtesy of VOLVO CARS OF NORTH AMERICA.

A7 = 931 mm

A8 = 813 mm

Fig 4: Engine Compartment And Related Bracket Position Dimensions And Measurement Locations (4 Of 6)

Courtesy of VOLVO CARS OF NORTH AMERICA.

A9 = 99 mm

Left side.

Fig 5: Engine Compartment And Related Bracket Position Dimensions And Measurement Locations (5 Of 6)

Courtesy of VOLVO CARS OF NORTH AMERICA.

A10 = 123 mm

A17 = 23 mm

Right-hand side.

Fig 6: Engine Compartment And Related Bracket Position Dimensions And Measurement Locations (6 Of 6)

Courtesy of VOLVO CARS OF NORTH AMERICA.

A14 = 67 mm

A15 = 38 mm

A16 = 38 mm
