Installing Torque Control Arm

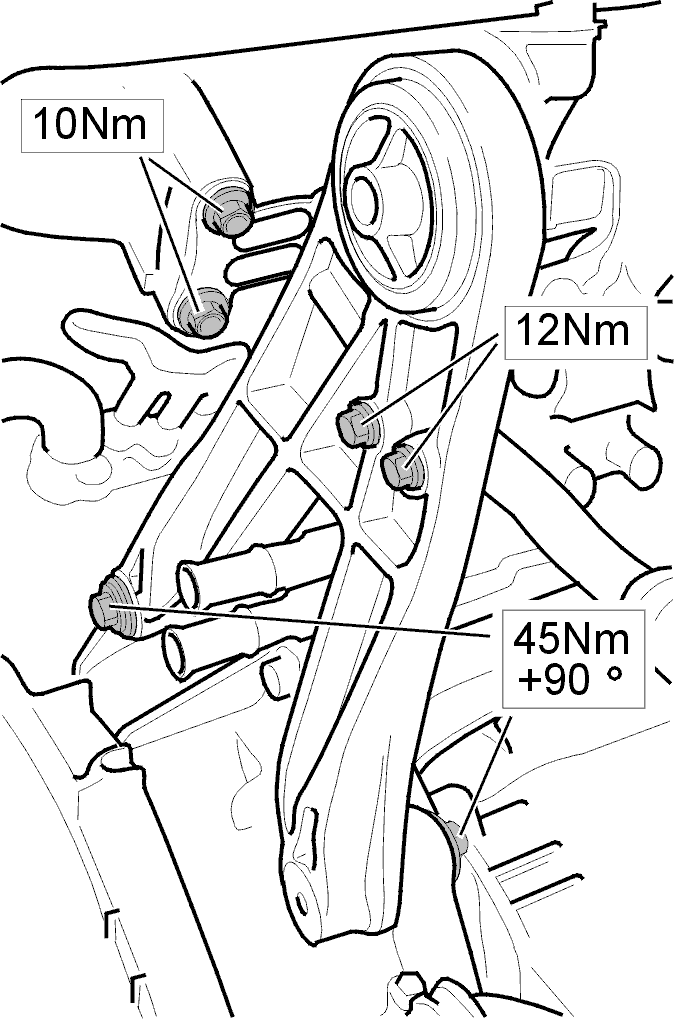

Fig 1: Identifying Torque Control Arm, Bolts And Torque Values

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the new torque control arm and tighten as shown in the illustration.

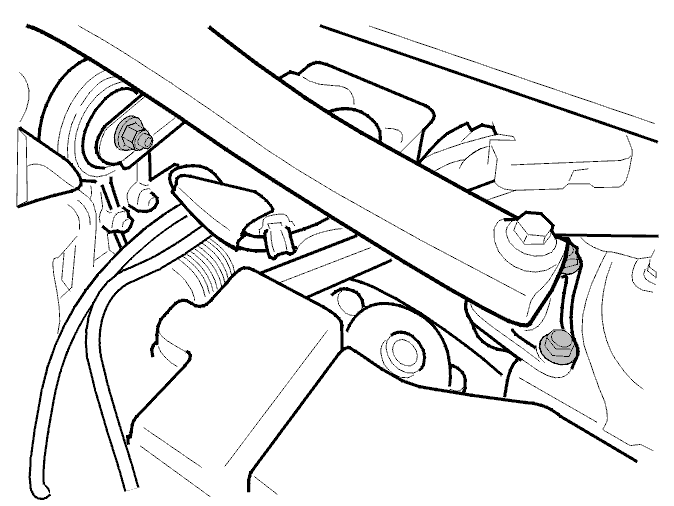

Fig 2: Identifying Engine Stabilizer Brace

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install

• the torque rod.
• the screws for the brackets at the suspension turrets. Tighten to 50 Nm  .
• the screw for the torque rod mounting in the bracket on the engine. Tighten to 80 Nm  .
