Localization symbols

Localization symbols are used to simplify localization in the procedure.

As the images are reused, the silhouette may not correspond with the selected vehicle model.

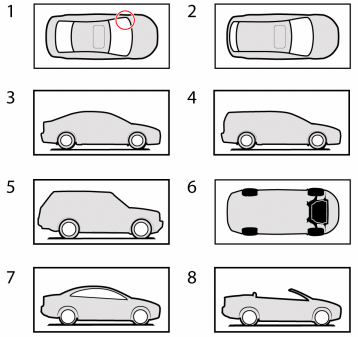

Fig 1: Identifying Localization Symbols

Courtesy of VOLVO CARS OF NORTH AMERICA.

1. Sedan/coupe/convertible view from above. A red circle or a line indicates a focused area.

2. Station wagon, SUV, view from above

3. Sedan, view from side

4. Station wagon, view from side

5. SUV, view from side

6. View from below

7. Coupe/convertible, view from the side (roof closed)

8. Convertible, view from the side (roof open)
