Removing the spring strut

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

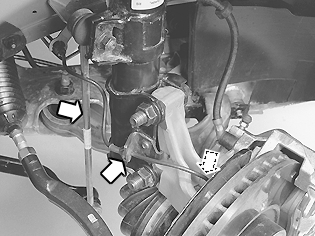

Fig 1: ABS Line And Anti-Roll Bar Link From The Spring Strut

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove

the wheel
the anti-roll bar link from the spring strut. Use a Torx wrench as a counterhold so that the boot is not damaged
the ABS sensor. Hang up the sensor using a piece of wire
the ABS line from the spring strut.

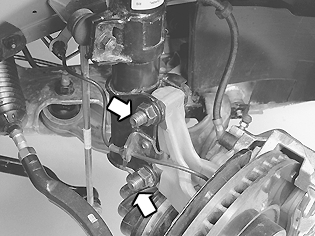

Fig 2: Screws Retaining Spring Strut In Wheel Spindle

Courtesy of VOLVO CARS OF NORTH AMERICA.

Measure the position of the wheel spindle and spring strut. See Wheel knuckle / spring strut, calibrating .

both screws retaining the spring strut in the wheel spindle.

Fig 3: Nuts Holding Spring Strut Mounting In Bodywork

Courtesy of VOLVO CARS OF NORTH AMERICA.

the three nuts holding the spring strut mounting in the bodywork
the spring strut.
