2-Piece Sensor

Remove

1. Remove the wheel.
2. Remove the tire from the rim.
   CAUTION: Do not use tools within the marked area. See Fig 1.
   CAUTION: Always start outside the marked area and continue in the direction from the valve.
   CAUTION: Release the tire bead from the wheel rim diagonally opposite to the valve.
3. Remove the sensor from valve. See Fig 2.
4. Remove the valve. See Fig 2.

Install

1. Install the sensor on the valve. Tighten NEW Torx screw to 44 INCH Lbs. (5 n.m.).
2. Brush the valve (1) with soapy water and install the valve on the rim. See Fig 3.
3. Fit the tire and balance the wheel.
   CAUTION: Do not use tools within the marked area. See Fig 1.
   CAUTION: Always start outside the marked area and continue in the direction from the valve.
4. Install wheel.
5. After replacing sensors, the control module does not need programming. The control module automatically contacts the sensor itself after a few minutes driving. LF Initiator can be used instead of driving.

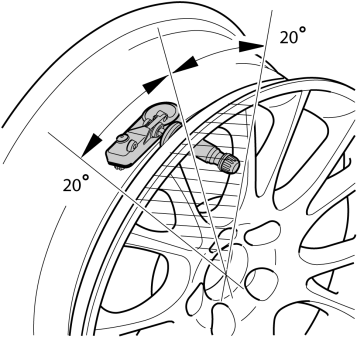

Fig 1: Identifying Marked Area On Wheel

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 2: Removing 2-Piece Sensor & Valve

Courtesy of VOLVO CARS OF NORTH AMERICA.

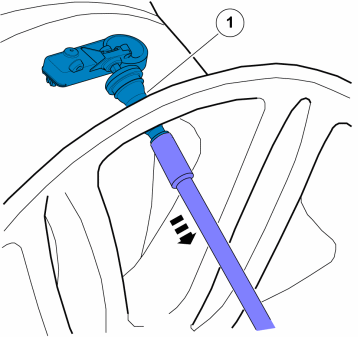

Fig 3: Installing 2-Piece Sensor & Valve

Courtesy of VOLVO CARS OF NORTH AMERICA.
