Installing Rear Sub-Frame Bushing

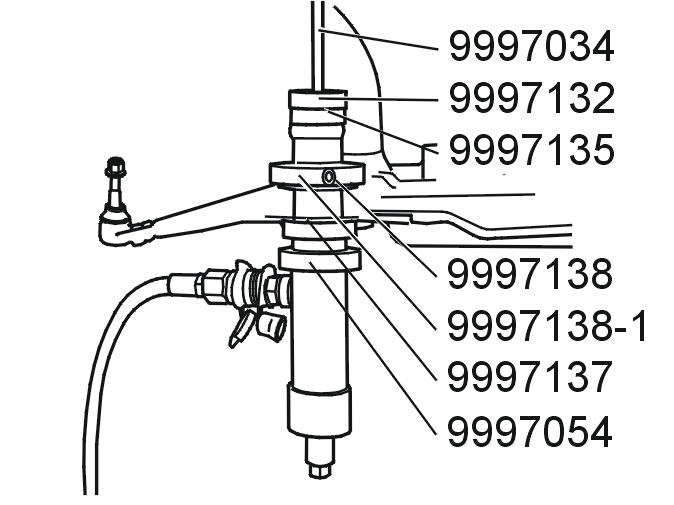

Fig 1: Identifying Control Arm

Courtesy of VOLVO CARS CORPORATION

Install the control arm.

Use: see 9997054 with: see 9997034 , nut: see 9997132 , socket: see 9997138 , drift: see 9997135 lock ring: see 9997138 and ring: see 9997137 .

NOTE:

The bushings shall be installed with the markings in line across the length of the car.

Pull the bushing in approximately half-way and then remove: see 9997138 .

Then pull the bushing in so that it bottoms out against the flange.
