Side Members, Front

Fig 1: Body Dimension Measuring Point Symbols
GLL103315Courtesy of VOLVO CARS CORPORATION

The dimensions in the table are listed as follows:

Symbol number 1 means that the measurement is taken from the center.

Symbol number 2 means that the measurement is taken from an edge.

GLL103388Courtesy of VOLVO CARS CORPORATION

Symbol number 3 means that you measure from a cut marking. Measurement takes place from the bottom of the recess. Refer to the illustration above. If only one measuring point symbol is shown it applies to both measuring points. Otherwise the symbols are shown on one side each of the measurement designation in the illustration.

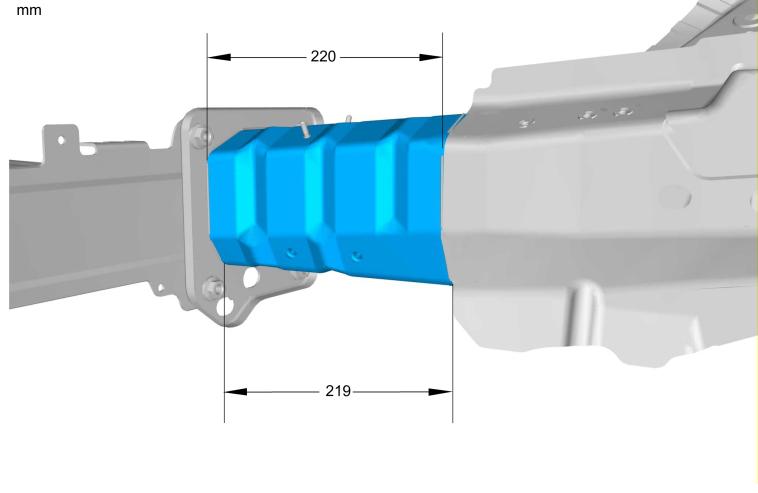

Fig 2: Front Side Member Section Dimensions And Measuring Points (1 Of 2)
GLL155967Courtesy of VOLVO CARS CORPORATION

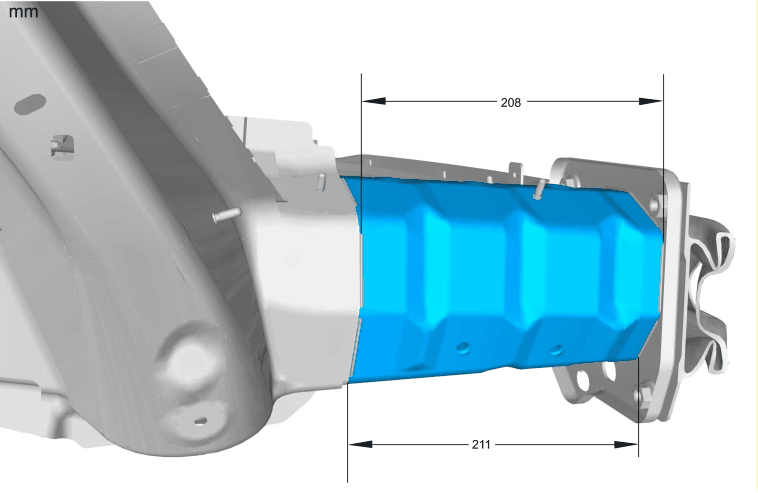

Fig 3: Front Side Member Section Dimensions And Measuring Points (2 Of 2)
GLL155968Courtesy of VOLVO CARS CORPORATION

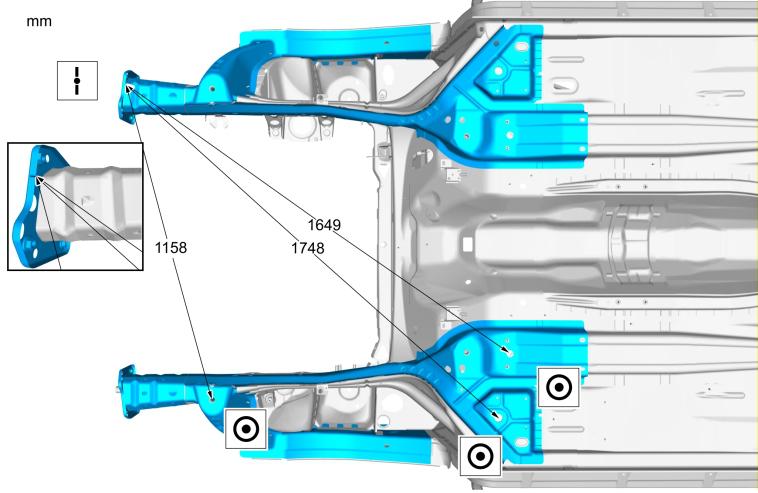

Fig 4: Front Side Member Position Dimensions And Measurement Locations (1 Of 3)
GLL155969Courtesy of VOLVO CARS CORPORATION

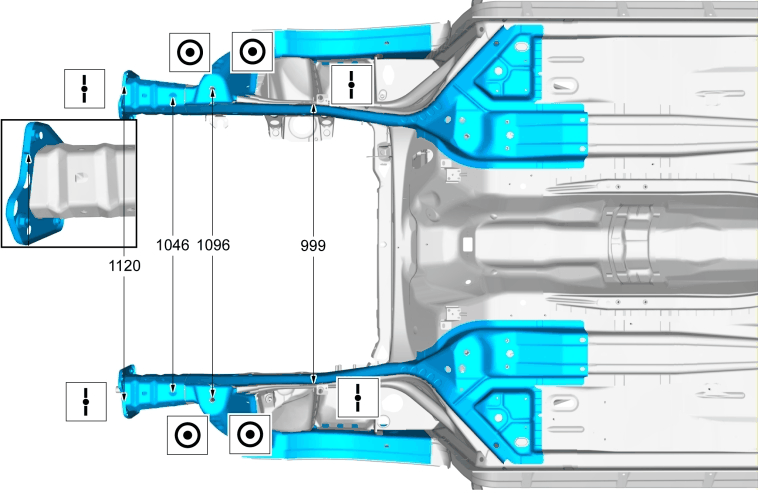

Fig 5: Front Side Member Position Dimensions And Measurement Locations (2 Of 3)
GLL155970Courtesy of VOLVO CARS CORPORATION

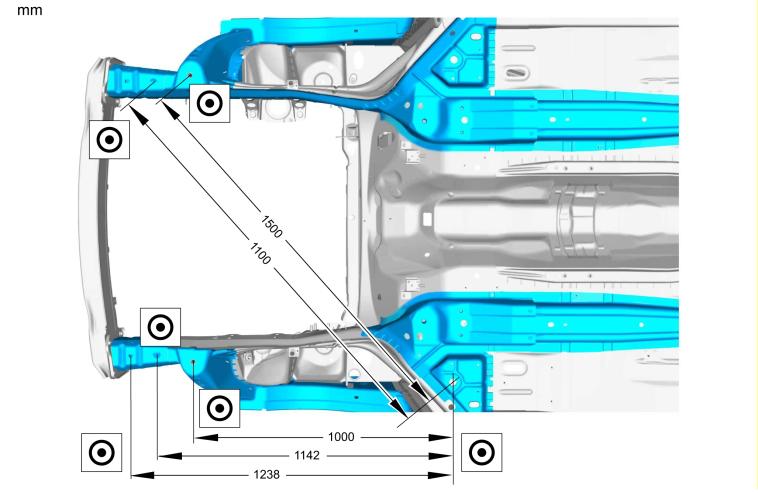

Fig 6: Front Side Member Position Dimensions And Measurement Locations (3 Of 3)
GLL155971Courtesy of VOLVO CARS CORPORATION

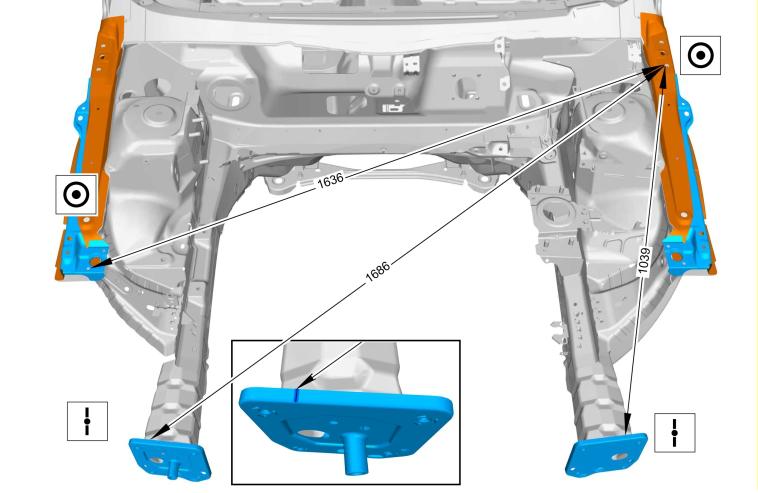

Fig 7: Engine Compartment Dimensions And Measurement Locations (1 Of 2)
GLL155972Courtesy of VOLVO CARS CORPORATION

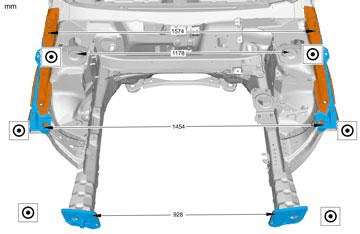

Fig 8: Engine Compartment Dimensions And Measurement Locations (2 Of 2)
GLL155973Courtesy of VOLVO CARS CORPORATION
