Lock Motor Tailgate/Trunk Lid

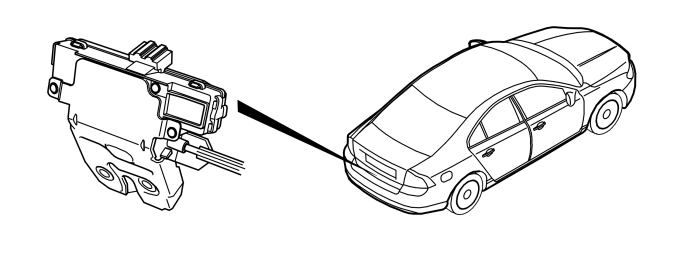

Fig 1: Locating Tailgate/Trunk Lid Lock Motor

Courtesy of VOLVO CARS CORPORATION

In practice there is no "locked" position for the lock on the tailgate/trunk lid. The difference between locked and unlocked is whether the central electronic module (CEM) will activate the lock motor or not when the switch on the tailgate/trunk lid is pressed.

The tailgate/trunk lid is "locked" and "unlocked" at the same time as other doors if an unlock command is received from the remote key. The tailgate/trunk lid can also be unlocked separately using a specific button on remote key or via switch on the light switch module (LSM).

The switch on the tailgate/trunk lid and lock motor (6/8) is directly connected to the central electronic module (CEM).
