Occupant Classification Sensor (OCS)

CAUTION:

In the event of damage on the front seat cushion upholstery, see:SEAT OCCUPANT SENSOR CHECK and SEAT OCCUPANT SENSOR CLEANING .

CAUTION:

All system components must be replaced when replacing the occupant classification sensor.

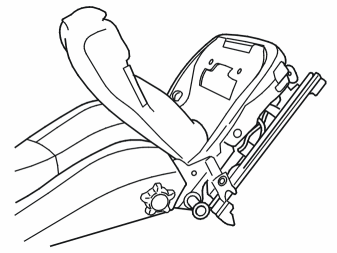

Fig 1: Removing Seat Cushion Upholstery (1 Of 2)

Courtesy of VOLVO CARS CORPORATION

Remove the seat cushion upholstery: FRONT SEAT CUSHION .

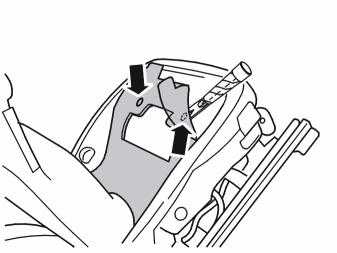

Fig 2: Removing Seat Cushion Upholstery (2 Of 2)

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Handle the sensor with care.

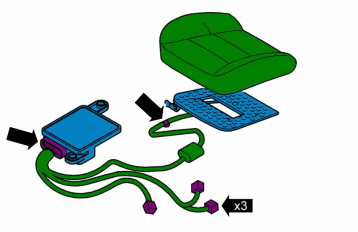

Fig 3: Identifying Pressure Sensor/Silicon Cushion, Clips And Connectors

Courtesy of VOLVO CARS CORPORATION

To install, reverse the removal procedure

WARNING:

Calibrate the front occupant classification sensor using VIDA (Volvo scan tool).
