Measuring The Outside Temperature

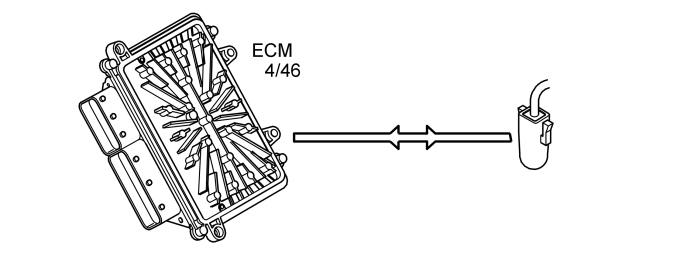

Fig 1: Outside Temperature Sensor Communication

Courtesy of VOLVO CARS CORPORATION

The left door mirror has a temperature sensor for the outside temperature. The signal from the temperature sensor is directly connected to the central electronic module (CEM) (4/46). The signal is not controlled by the driver door module (DDM) (3/126) or the passenger door module (PDM) (3/127).
