Sub-Frame, Front, Replacing: Preparation

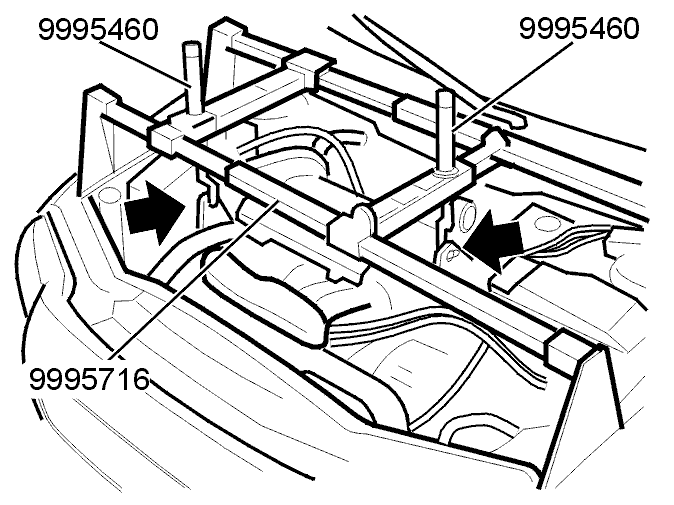

Fig 1: 999 5716 And Lifting Hooks 999 5460 Installed

Courtesy of VOLVO CARS CORPORATION

• Install lifting beam see 9995716 . Install lifting hooks see 9995460
• Lift the engine to relieve the load on the engine pads.

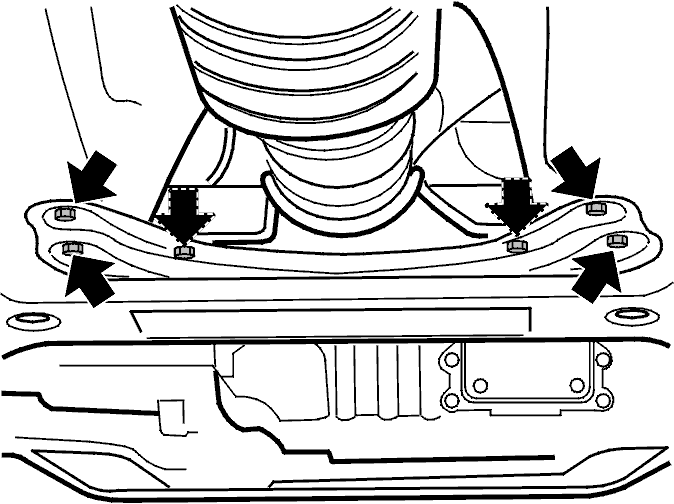

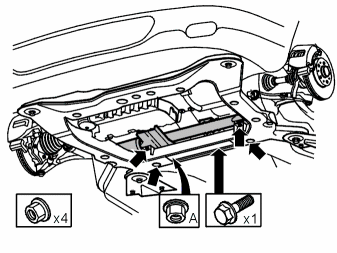

Fig 2: Identifying Splash Guard Under Engine

Courtesy of VOLVO CARS CORPORATION

Remove

• the front wheels
• the splash guard under the engine.

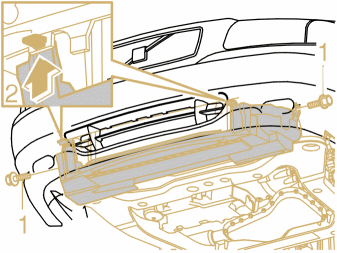

Fig 3: Air Baffle

Courtesy of VOLVO CARS CORPORATION

• the air duct cover.

Fig 4: Identifying Screw For Cable Duct

Courtesy of VOLVO CARS CORPORATION

• the cable duct screw.

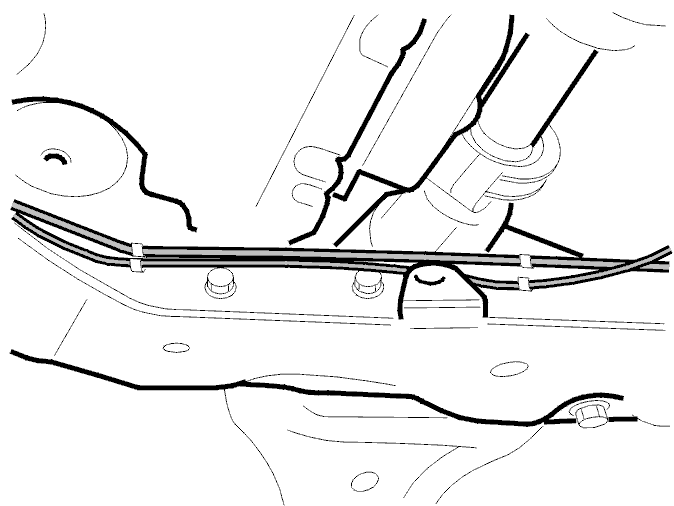

Fig 5: Identifying Oil Pipe And Clamps For Steering Gear

Courtesy of VOLVO CARS CORPORATION

Remove

• the oil pipes from the steering gear from the snap fasteners on the sub-frame
• the hose for the EVAP canister along the sub-frame
• the fuel line for the engine block heater and the engine block heater (if applicable) on the left side of the sub-frame.

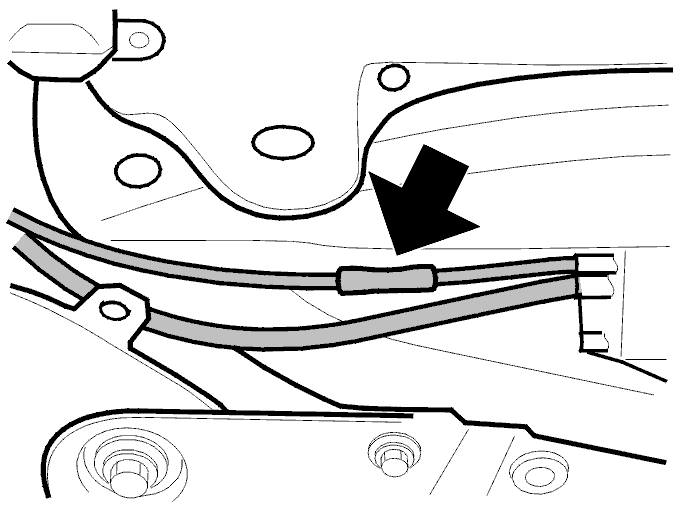

Fig 6: EVAP Canister Hose

Courtesy of VOLVO CARS CORPORATION

Remove

• the hose for the EVAP canister in the joint by pulling apart the hose. Pull it forwards under the anti-roll bar and remove it from the snap fastener on the sub-frame.

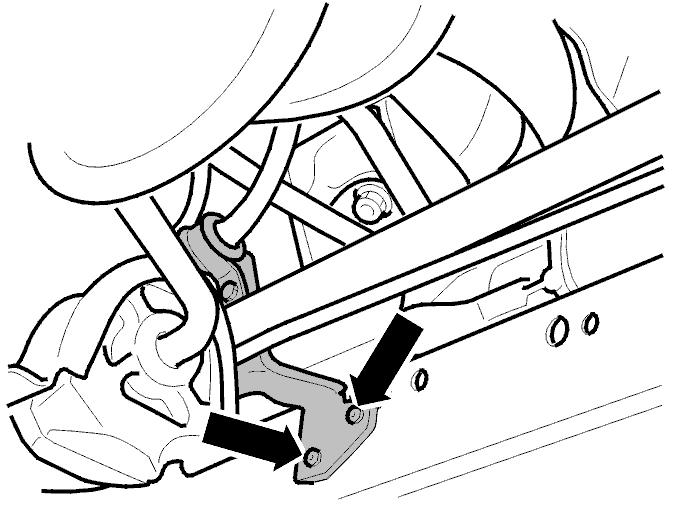

Fig 7: Exhaust Pipe Bracket Screws

Courtesy of VOLVO CARS CORPORATION

Remove

• the mounting for the exhaust pipe on the bracket
• the screws holding the bracket for the exhaust pipe. Release the brake pipe from the snap fastener on the bracket
• the bracket.

Fig 8: Heated Oxygen Sensor (HO2S) From Mounting

Courtesy of VOLVO CARS CORPORATION

• Remove the heated oxygen sensor (HO2S) wiring from the mounting.

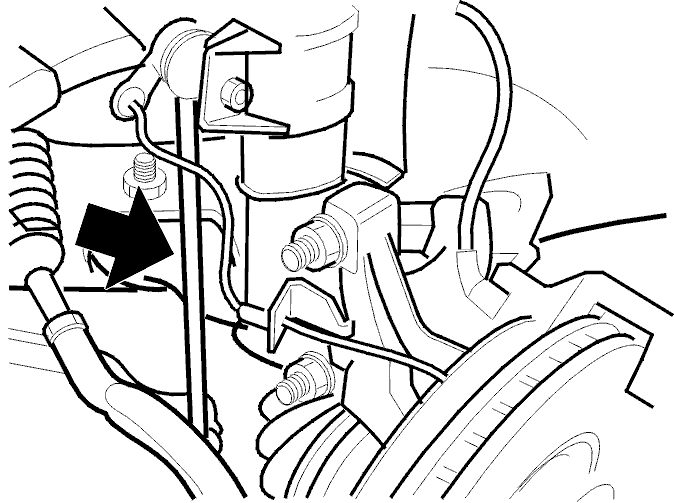

Fig 9: Anti-Roll Bar

Courtesy of VOLVO CARS CORPORATION

• Remove the anti-roll bar links from the anti-roll bar. Counterhold using a Torx wrench so that the ball joint boot is not damaged.

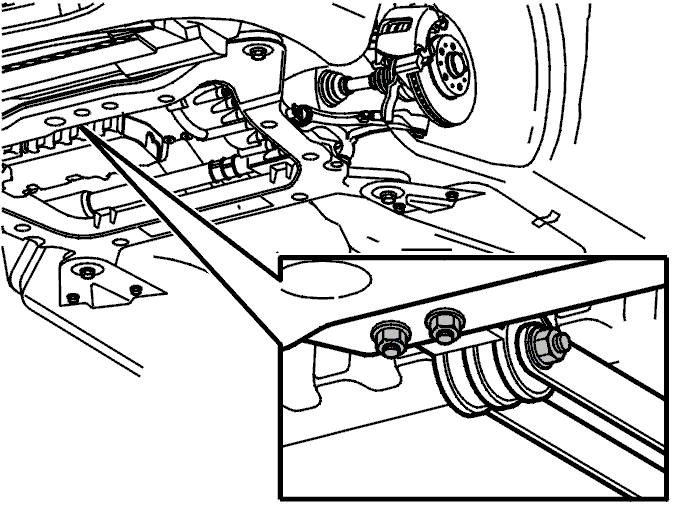

Fig 10: Identifying Lower Torque Rod And Nuts

Courtesy of VOLVO CARS CORPORATION

• Remove both the nuts retaining the lower torque rod
• Remove the screw and bend up the bushing with the holder towards the torque rod.

Fig 11: Front Engine Pad Screw

Courtesy of VOLVO CARS CORPORATION

• Remove the front engine pad screw.

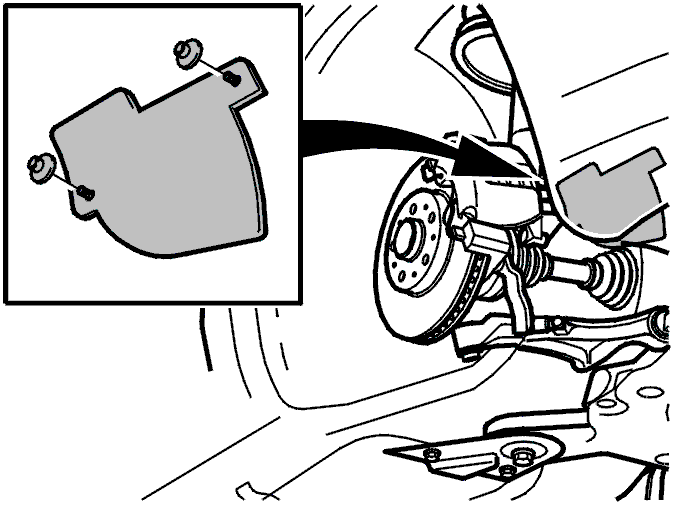

Fig 12: Fender Liner

Courtesy of VOLVO CARS CORPORATION

• Slacken off the right lower front section of the fender liner
• Remove the plastic nuts on the fender liner
• Remove the splash guard
• Bend out the fender liner.

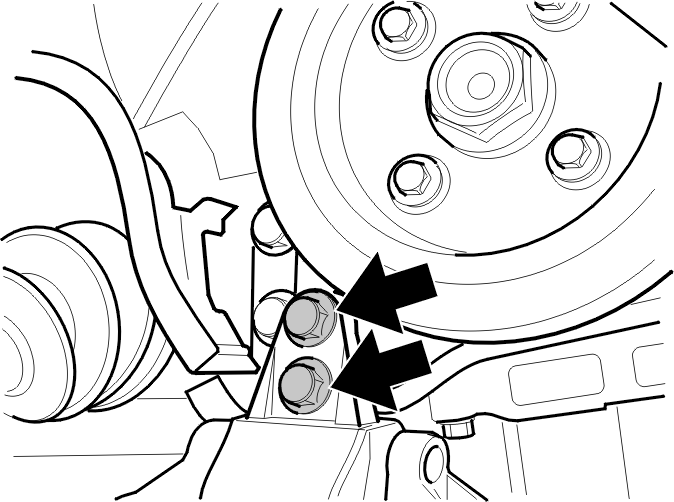

Fig 13: Engine Mounting Screws

Courtesy of VOLVO CARS CORPORATION

• Remove both the right hand engine mounting screws.

Fig 14: Identifying Bolt And Nut Holding Steering Gear To Sub-Frame

Courtesy of VOLVO CARS CORPORATION

• Remove the four nuts and the screw holding the steering gear to the sub-frame
• Remove the delivery line from the clips on the sub-frame

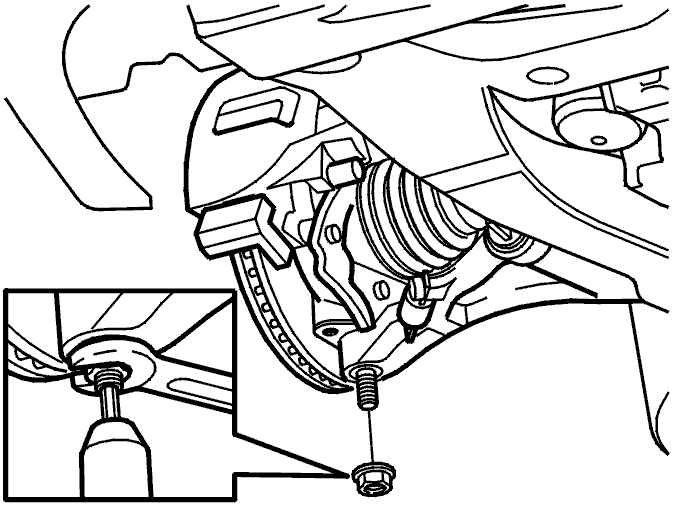

Fig 15: Ball Joints Nuts

Courtesy of VOLVO CARS CORPORATION

• Remove the nuts from the ball joints. Counterhold with a Torx wrench so that the ball joint boot is not damaged.
