Shift Solenoids

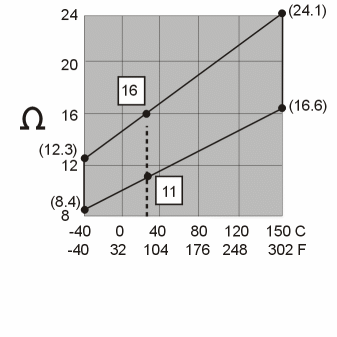

Fig 1: Identifying Ohms Resistance Temperature Graph

Courtesy of VOLVO CARS CORPORATION

Component	Note	Resistance (Ω)
Gear shift solenoid S1, S2	Resistance between the solenoid pins and the solenoid casing/transmission housing.	+20 °C= 11-16 Ω

Other values, see diagram. When measuring at other temperature than +20 °C the check-measurement shall be performed at +20 °C. This is to ensure if the resistance is correct or not.
