Body Side Inner: Installation

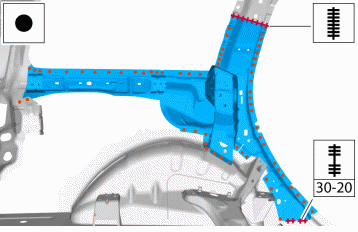

Fig 1: Inner Body Side Weld Locations (1 Of 2)

Courtesy of VOLVO CARS CORPORATION

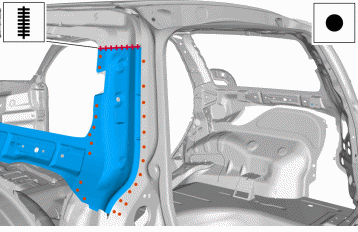

Fig 2: Inner Body Side Weld Locations (2 Of 2)

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Torque:  M6

10 Nm

Follow the instructions regarding body sealing, sealant schedule; refer to BODY SEAL, SEALING DIAGRAM .

Follow the instructions regarding corrosion protection; refer to RUSTPROOFING .

To install, reverse the removal procedure.
