Camshaft Position Sensor (CMP): Removal

NOTE:

Removal steps in this procedure may contain installation details.

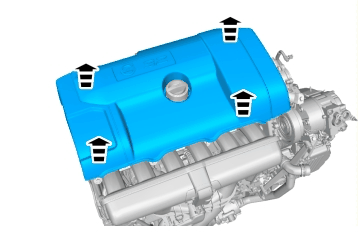

Fig 1: Identifying Engine Cover Removal

GLL156080

Courtesy of VOLVO CARS CORPORATION

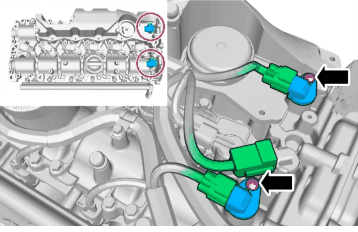

Fig 2: Locating Camshaft Position Sensors (CMP)

GLL156192

Courtesy of VOLVO CARS CORPORATION

Torque: M6

10 Nm
